Hydra-Cell® MT

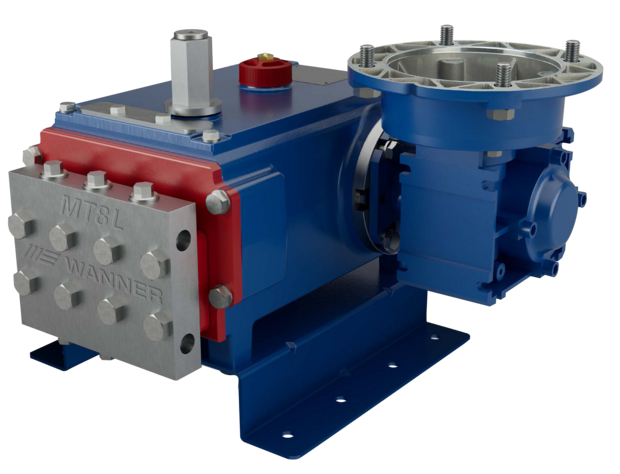

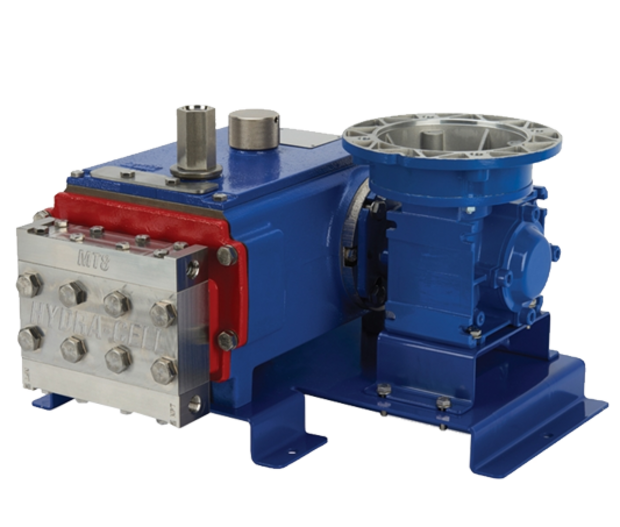

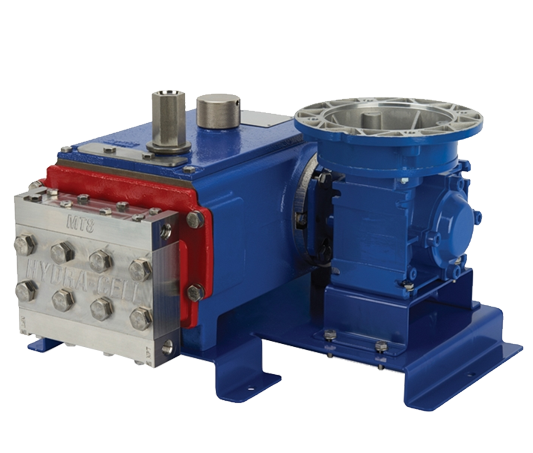

The new triplex metering pump WANNER™ Hydra-Cell® Pro MT8 has been designed to dispense very low flow rates at high pressure. The robust and compact pump can be controlled down to 0.227 l / h and at the same time reaches a maximum pressure of 241 bar! With the small footprint of approx. 36 x 30 cm, a lot of space can be saved and an efficient dosing system can be set up.
Hydra-Cell® MT types
View
 |
 |
|
|
MT8 |
MT8 LP |
|
| View this pump type | View this pump type | |
| Max. flow |
30.28 l/h
|
30.28 l/h
|
| Max. discharge pressure |
241 bar
|
103 bar
|
| Max. temperature |
121 °C
|
121 °C
|
| Max. particle size |
0.2 mm
|
0.2 mm
|
| Certificates |
ATEX. API 675
|
ATEX. API 675
|
| Viscosity |
2000 mPa.s
|
2000 mPa.s
|
| Download datasheet | Download datasheet | Download datasheet |
