MT8

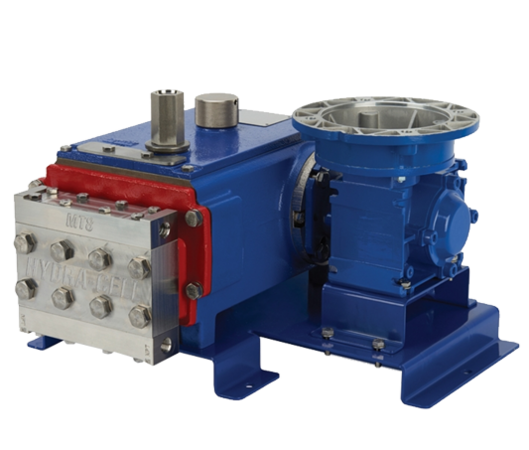

The Verderbar Hydra-Cell MT8 Triplex Metering Pump is the optimal choice for applications that require precise dosing of the smallest flow rates under high pressure. The piston diaphragm pump impresses with its outstanding dosing accuracy and excellent control options, which not only meets but exceeds the performance criteria of API 675. With its robust and compact design, it can be regulated to up to 0.227 l/h at a maximum pressure of 241 bar. Their compact design together with the three diaphragms ensures a smooth, almost pulsation-free flow.Perishable metering pumps are based on the proven Hydra-Cell principle. They offer unmatched accuracy, repeatability (± 1%) and linearity (± 1%), while ensuring precise and consistent dosing (± 0.5%). They are suitable for conveying corrosive, non-lubricating and abrasive fluids and can even run dry without damage. They are used in the oil and gas industry, paper industry, high-pressure cleaning, dosing tasks, reverse osmosis and in car washes, among others.
-
Properties
Property Max. flow 30.28 l/h Max. discharge pressure 241 bar Max. temperature 121 °C Max. particle size 0.2 mm Certificates ATEX. API 675 Viscosity 2000 mPa.s -
Description
The Verderbar Hydra-Cell MT8 Triplex Metering Pump is the optimal choice for applications that require precise dosing of the smallest flow rates under high pressure. The piston diaphragm pump impresses with its outstanding dosing accuracy and excellent control options, which not only meets but exceeds the performance criteria of API 675. With its robust and compact design, it can be regulated to up to 0.227 l/h at a maximum pressure of 241 bar. Their compact design together with the three diaphragms ensures a smooth, almost pulsation-free flow.Perishable metering pumps are based on the proven Hydra-Cell principle. They offer unmatched accuracy, repeatability (± 1%) and linearity (± 1%), while ensuring precise and consistent dosing (± 0.5%). They are suitable for conveying corrosive, non-lubricating and abrasive fluids and can even run dry without damage. They are used in the oil and gas industry, paper industry, high-pressure cleaning, dosing tasks, reverse osmosis and in car washes, among others.
