Mixing technologies
The Packo high shear pumps share their construction and spare parts with the renowned FP2 and FP3 pumps. They are mainly used for in-line mixing, homogenisation and dispergation applications.
Mixing Technologies
- Highest efficiency on the market
- Self-pumping
- Very quiet operation
- Hygienic design, easy to clean
Mixing technologies types
View
 |
|
 |
|
|

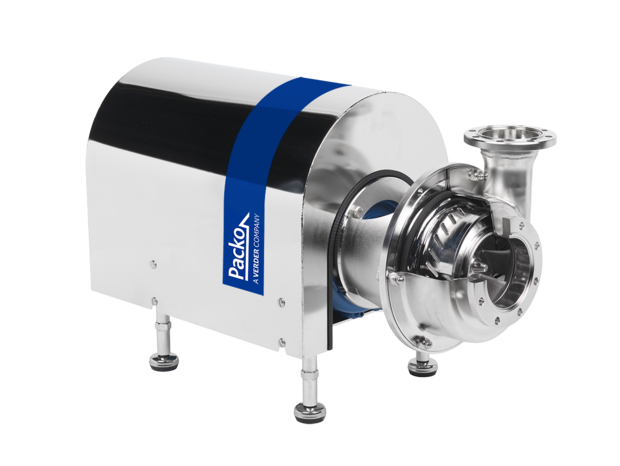

SFP2 |
SFP3 |

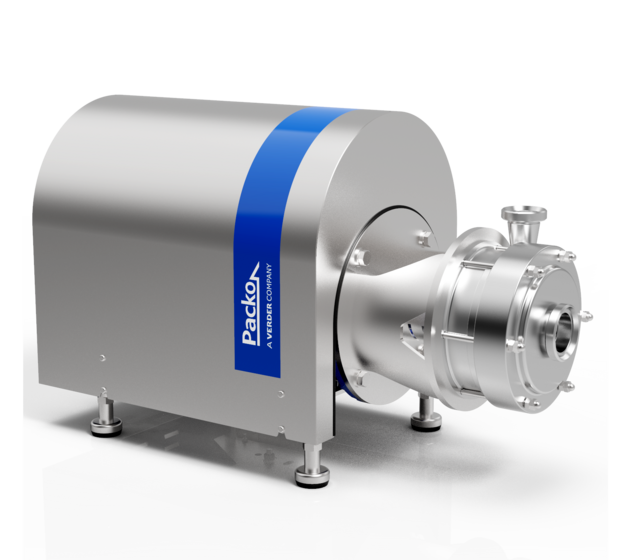

CM |
|
| View this pump type | View this pump type | View this pump type | |
| Max. flow |
80 m3/h
|
200 m3/h
|
15 m3/h
|
| Differential head |
45 m wc
|
55 m wc
|
35 m wc
|
| Max. pressure |
Inlet: 10 bar
|
Discharge: 10 bar
|
Inlet: 10 bar
|
| Max. shear |
100.000 s-1
|
60.000 s-1
|
|
| Viscosity |
1000 cP
|
1000 cP
|
100.000 cP with feed pump
|
| Max. temperature |
140 °C
|
140 °C
|
140 °C
|
| Max. drive power |
|
|
45 kW
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Optimized perforated stator
The mixing shear in the SFP2 and SFP3 high shear pumps is created in a narrow gap between the pump impeller and an innovative patented stator. The geometry of the perforation was developed using CFD and provides a unique combination of highest particle size reduction, quiet operation and low energy consumption. The final goal is to achieve a stable homogeneous solution of two liquids with high difference in viscosity and or density.
