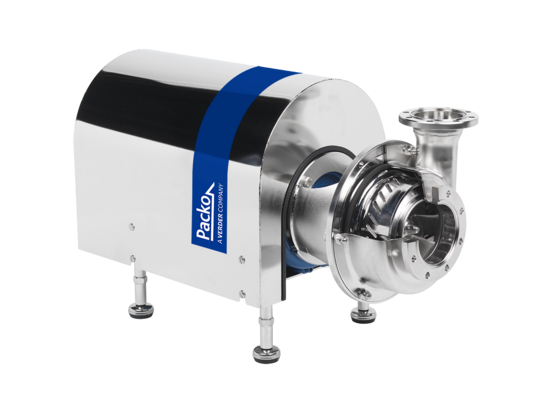

SFP3

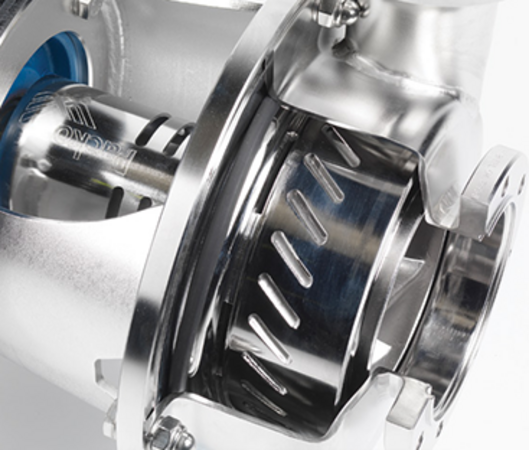

High shear pump with closed impeller and patented stator for high flow and pressure. The shear is generated between the rotor and an innovative and optimized perforated stator. The shear can be optimized and increased by raising the speed of rotation. Shear rates up to 60.000 s-1 can be achieved at a maximum speed of 3600 rpm.

  • Properties

    Property
    Max. flow 200 m3/h
    Differential head 55 m wc
    Max. pressure Discharge: 10 bar
    Max. shear 60.000 s-1
    Viscosity 1000 cP
    Max. temperature 140 °C
    Impeller type Closed
    Max. drive power 45 kW
    Speed 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L or similar
    Mechanical seal configuration Single, quench, double
    Available material O-ring EPDM, FKM, FEP-FKM, FFKM or similar
    Connections Hygienic fittings
    Surface finish Hygienic quality, internal welds hand polished + electropolished (wetted 0.8 μm - impeller 3.2 μm)
    Certificates 1935/2004 EC. FDA. USP. ATEX

  • Description

    High shear pump with closed impeller and patented stator for high flow and pressure. The shear is generated between the rotor and an innovative and optimized perforated stator. The shear can be optimized and increased by raising the speed of rotation. Shear rates up to 60.000 s-1 can be achieved at a maximum speed of 3600 rpm.

  • Downloads

Pump series SFP2 & SFP3

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Pressed stainless steel in 2B quality plate, extremely smooth
  3. Large seal cavity to clean mechanical seal properly
  4. Monobloc execution with std. IEC motors



Application areas

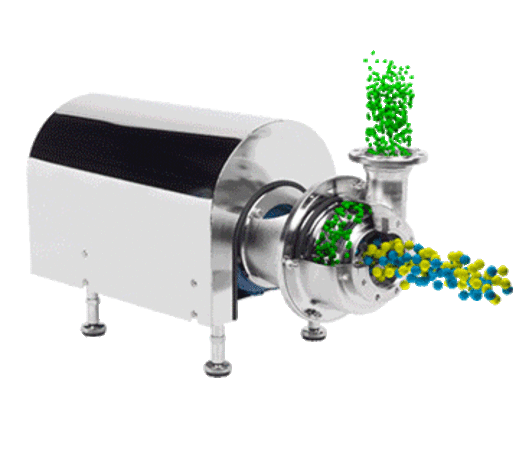

The Packo shear mixer pump is mainly used for in-line mixing, homogenisation and dispergation applications.

Mixing of two liquids:

With a large different specific gravity,
Having a large different viscosity or that are difficult to mix.

Also dispersing of:

Solids in liquids
Dispersion of gas in liquids.

Your benefits

  • Shear rates up to 60.000 s-1
  • Highest efficiency on the market, energy saving
  • Use of std. components
  • Self pumping
  • Hygienic design, so easy to clean
  • Easy installation and maintenance
  • Very quiet operation

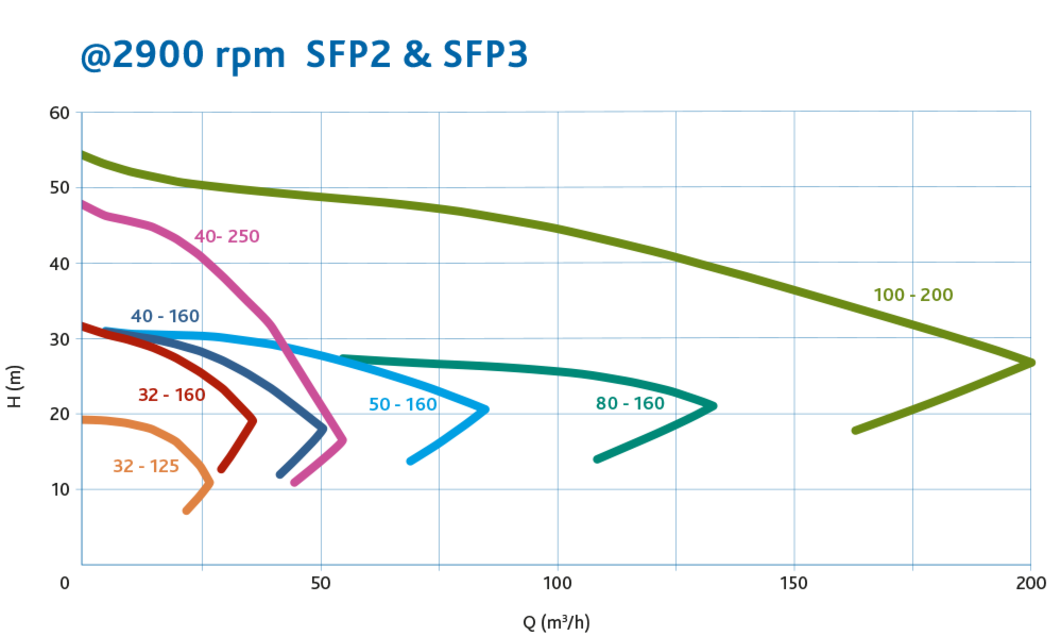

Performance Curves
