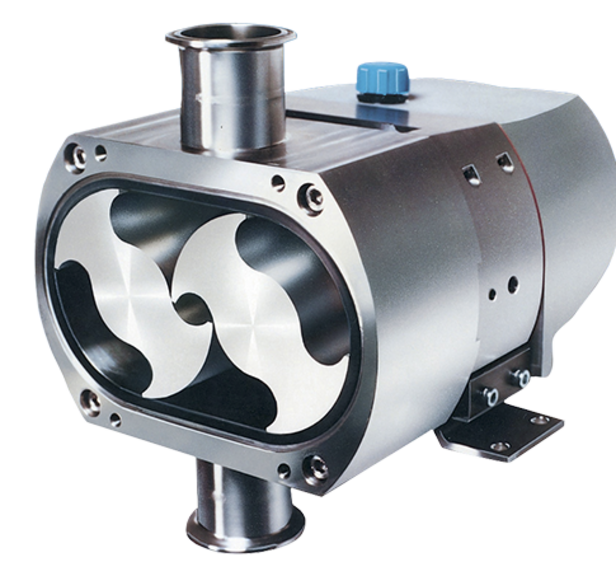

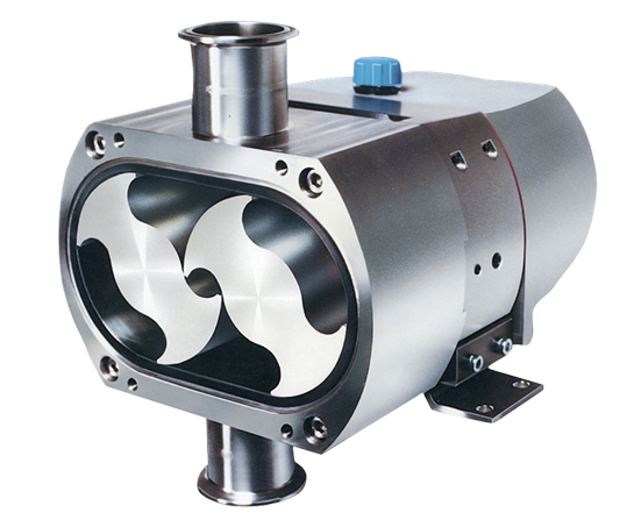

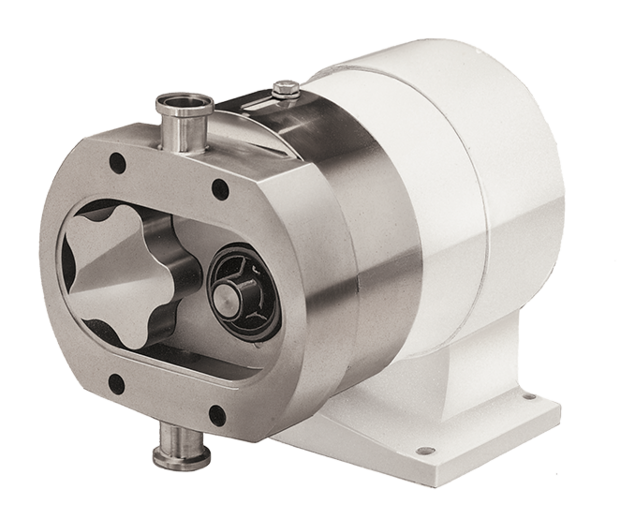

55 Series & Ultima

Fully self-draining pump head: no hold-up of process liquid or cleaning agents. Rapid de-contamination and product change-over. External rotor fixing - no internal crevices. Low-carbon 316L stainless-steel for maximum corrosion resistance. Hygienic seal ring for all static seals instead of O rings.

Shaft seal design combines highest levels of containment with total product draining, no cavities, and front access for easy inspection and fast maintenance. Standard surface finish: 0.8µm (150 grit), with 0.5µ (240 grit) and electropolish options. Optional steam/sterile fluid barriers on joints and front cover sealing, for true aseptic processes. High efficiency to minimise damage to shear-sensitive low viscosity fluids.

Distribution Network Contact a Pump Expert

The perfect pump for delicate, viscous and particle-laden fluids

  • Aseptic operation, unwanted micro-organisms are kept out of the fluid
    stream
  • High containment by specially developed pump head joints
  • High Hygiene by use of FDA and USP listed materials
  • Standard surface finish: 0.5 µm
    (240 grit) and electropolished

55 Series & Ultima types

View
55/210 55/320 55/420 LU42 LU44 LU52 LU54 LU62 LU64

55/210

55/320

55/420

LU42

LU44

LU52

LU54

LU62

LU64
View this pump type View this pump type View this pump type View this pump type View this pump type View this pump type View this pump type View this pump type View this pump type
Port Size Inlet/ Outlet Standard
1/2" (12.5 mm)
3/4" (19 mm)
1" (25 mm)
1" (25mm) Standard 1 1/12" (38mm) Enlarged
1 1/2" (38mm) Standard 2" (50mm) Enlarged
1 1/2" (38mm) Standard 2" (50mm) Enlarged
2" (50mm) Standard 3" (76mm) Enlarged
2" (50mm) Reduced 2 1/2" (63mm) Standard 3" (76mm) Enlarged
3" (76mm) Standard 4" (100mm) Enlarged
Displacement US Gallons (Litres)
0.26 Gallons (1 litre) @ 100 revs
0.77 Gallons (2.9 litre) @ 100 revs
1.77 Gallons (6.7 litre) @ 100 revs
3.25 Gallons (12.3 litre) @ 100 revs
5.39 Gallons (20.4 litre) @ 100 revs
7.00 Gallons (26.5 litre) @ 100 revs
12.02 Gallons (45.5 litre) @ 100 revs
16.9 Gallons (64 litre) @ 100 revs
25.1 Gallons (95 litre) @ 100 revs
Flow Rate US Gallons (litres)
4.2 GPM (16 LPM)
11.6 GPM (44 LPM)
17.7 GPM (67 LPM)
32.5 GPM (123 LPM)
53.9 GPM (204 LPM)
70 GPM (254 LPM)
120.2 GPM (437 LPM)
121.8 GPM (461 LPM)
180.7 GPM (684 LPM)
Operating Pressure
203 psi (14 bar)
290 psi (20 bar)
290 psi (20 bar)
217 psi (15 bar)
116 psi (8 bar)
217 psi (15 bar)
116 psi (8 bar)
217 psi (15 bar)
116 psi (8 bar)
Speed
1500 max (rpm)
1500 max (rpm)
1000 max (rpm)
1000 max (rpm)
1000 max (rpm)
1000 max (rpm)
1000 max (rpm)
720 max (rpm)
720 max (rpm)
Operating Temperature
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
-22 to 284°F (-30 to 140°C)
Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet Download datasheet

Packo Lobe and Twin Brochure

Would you like to learn more about our full range of Packo Lobe and Twin Screw pumps? The following brochure contains all the information ready for you. Download it below!

Product Features 55 Series & Ultima

  • Flow rates up to 41m³/hr
  • Pressures up to Up to 20bar (290 psi)
  • Temperature range: -30ºC to +140ºC
  • Liquid viscosity range: 1 to 1,000,000 centipoise
  • Ports: ½" to 4" (13mm to 100mm)
