55/210

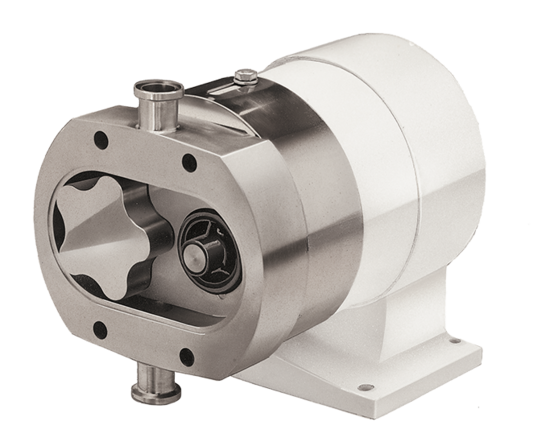

The Packo 55 series represent a cutting-edge development of rotating volumetric pumps for pharmaceutical and food industries. The pumps have been designed to offer the very highest standards for CIP (cleaning -in-place) and SIP (sterilization-in-place) and aseptic operation (resistance against penetration of e.g., microorganisms via joints). Smoothest surfaces in combination with a design without dead spaces, completed by an external rotor fixation, make the 55 series the perfect solution for all areas where the highest product safety and cleanability is required.
-
Properties
Property Port Size Inlet/ Outlet Standard 1/2" (12.5 mm) Displacement US Gallons (Litres) 0.26 Gallons (1 litre) @ 100 revs Flow Rate US Gallons (litres) 4.2 GPM (16 LPM) Operating Pressure 203 psi (14 bar) Speed 1500 max (rpm) Operating Temperature -22 to 284°F (-30 to 140°C) Dimensions (H X W X D) 191 x 114 x 135 (mm) Weight 8 (kg) 18 (lb) Body Materials 316L Stainless Steel Rotor 316L Stainless Steel Port Type All US and European standards Seal Front-loaded single mechanical face-type seals of hygienic design. Materials include carbon and silicon carbide. Low-pressure flush seals use the same single mechanical seal with an additional housing. Double mechanical seals use all the components from s Bearings High specification taper roller bearings Approvals EHEDG CIP, SIP and Bacterial tightness protocols; 3A sanitary standards 18-03 and 02-11; uses materials that meet FDA title 21, section 177.1550 -
Description
The Packo 55 series represent a cutting-edge development of rotating volumetric pumps for pharmaceutical and food industries. The pumps have been designed to offer the very highest standards for CIP (cleaning -in-place) and SIP (sterilization-in-place) and aseptic operation (resistance against penetration of e.g., microorganisms via joints). Smoothest surfaces in combination with a design without dead spaces, completed by an external rotor fixation, make the 55 series the perfect solution for all areas where the highest product safety and cleanability is required. -
