• Properties

    Property
    Max. flow 1800 m3/h
    Differential head 75 m wc
    Max. Inlet pressure 12 bar
    Viscosity 500 cP
    Max. temperature 140 °C
    Impeller type Closed with back vanes and balancing holes
    Max. free passage 27 mm
    Max. drive power 250 kW
    Speed 3000 / 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L or similar
    Mechanical seal configuration Single, quench, double
    Available material O-ring EPDM, FKM, FEP-FKM, FFKM, Silicone
    Connections Hygienic fittings
    Surface finish Hygienic quality, internal welds hand polished + electropolished
    Certificates 1935/2004 EC. FDA. USP. ATEX. MEI. EAC
  • Description

    The Packo pumps of the MFP3 series are used on the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc. These robust pumps have stainless steel 316L cast pump casings and closed investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the MFP3 pump series are the ideal reliable component for your production process.

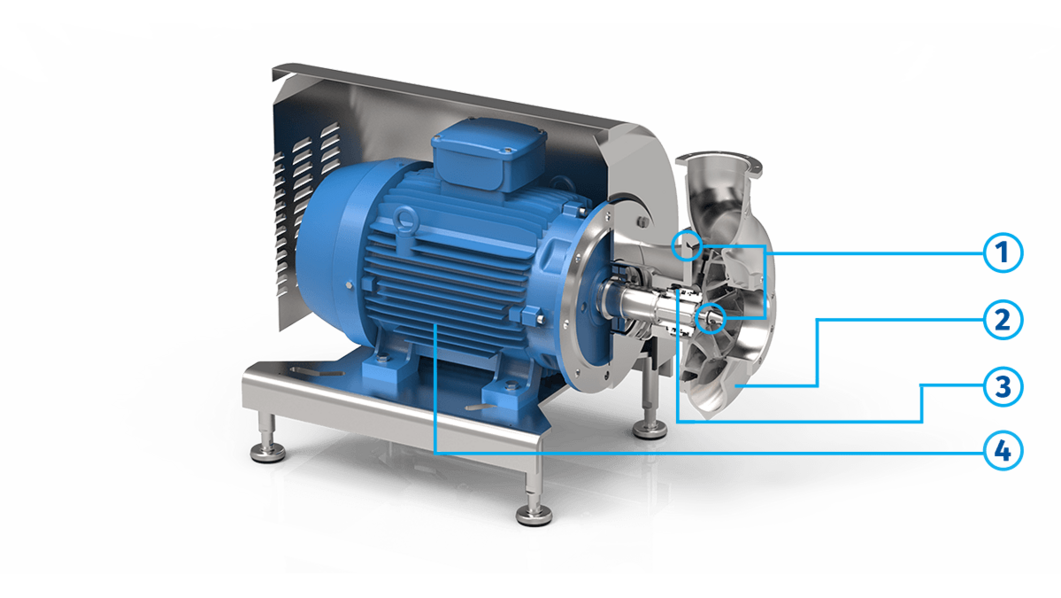

Pump series MFP3

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Solid design thanks to investment cast casings and impellers
  3. Large seal cavity to clean mechanical seal properly
  4. Monobloc execution with std. IEC motors

Performance Curves

Assembly and disassembly videos

Assembly video - Configuration with bellow seal - Seal diameter 43 mm

Assembly video - Configuration with bellow seal - Seal diameter 43 mm

Assembly video - Configuration with a sterile seal - Seal diameter 43 mm

Assembly video - Configuration with a sterile seal - Seal diameter 43 mm

Assembly video - Configuration with double seal - Seal diameter 43 mm

Assembly video - Configuration with double seal - Seal diameter 43 mm

Assembly video - Configuration with bellow seal - Seal diameter 70 mm

Assembly video - Configuration with bellow seal - Seal diameter 70 mm

Assembly video - Configuration with double seal - Seal diameter 70 mm

Assembly video - Configuration with double seal - Seal diameter 70 mm

Disassembly video - Replacement of bellow seal - Seal diameter 43 mm

Disassembly video - Replacement of bellow seal - Seal diameter 43 mm

Disassembly video - replacement sterile seal diameter 43

Disassembly video - replacement sterile seal diameter 43

Disassembly video - Replacement of bellow seal - Seal diameter 70 mm

Disassembly video - Replacement of bellow seal - Seal diameter 70 mm
