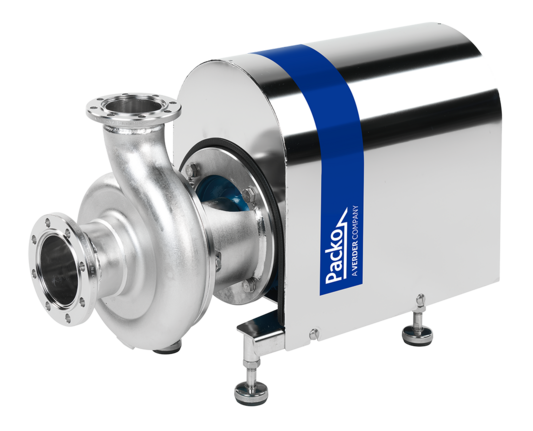

MFP2
The Packo pumps of the MFP2 series are used on the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc. These robust pumps have stainless steel 316L cast pump casings and open or semi-open investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the MFP2 pump series are the ideal reliable component for your production process.
-
Properties
Property Max. flow 120 m3/h Differential head 65 m wc Max. Inlet pressure 10 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open and semi-open Max. free passage 25 mm Max. drive power 22 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single, quench, double Available material O-ring EPDM, FKM, FEP-FKM, FFKM, Silicone Connections Hygienic fittings Surface finish Hygienic quality, internal welds hand polished + electropolished Certificates 1935/2004 EC. FDA. USP. ATEX. MEI. EAC -
Description
The Packo pumps of the MFP2 series are used on the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc. These robust pumps have stainless steel 316L cast pump casings and open or semi-open investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the MFP2 pump series are the ideal reliable component for your production process.

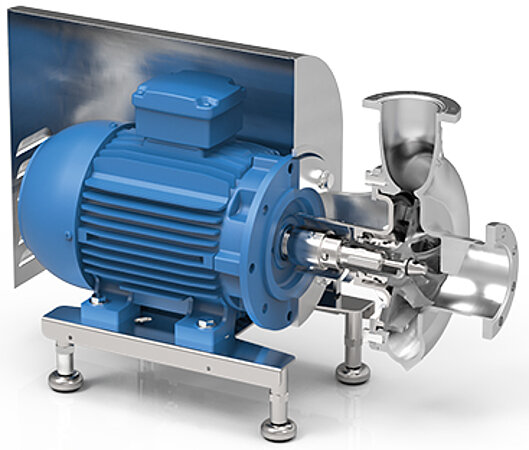

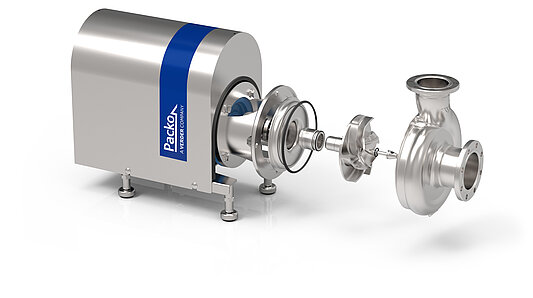

Pump series MFP2
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Solid design thanks to investment cast casings and impellers
- Large seal cavity to clean mechanical seal properly
- Monobloc execution with std. IEC motors
Application areas
These robust process pumps are the ideal reliable component for filtration applications, pasteurization, yeast propagation as well as for CIP cleaning systems.
Typical applications include filtration of beer, wine and fruit juices as well as pumping yeast, whey, curd, CIP, etc.
Your benefits
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: perfectly cleanable
- Easy construction and easy maintenance: less downtime
- Standard components
- Easy to install
- Robust construction
Performance Curves
At 2900 RPM
Assembly and disassembly videos
Assembly video - configuration with bellow seal
Assembly video - configuration with sterile seal
Assembly video - configuration with quench and bellow seal
Assembly video - configuration with double seal
Disassembly video - replacement of bellow seal
