FPP3

The food grade Packo stainless steel pumps of the FPP3 series are pumps made of solid, machined stainless steel 316L and are extremely suitable for high system pressure applications up to 40 bar. Typical applications can be found in reverse osmosis applications in all kind of food related applications such as whey filtration, CIP waste filtration, beer filtration, etc.

  • Properties

    Property
    Max. flow 350 m3/h
    Differential head 70 m wc
    Max. Inlet pressure 40 bar
    Viscosity 1000 cP
    Max. temperature 140 °C
    Impeller type Closed
    Max. free passage 17 mm
    Max. drive power 45 kW
    Speed 3000 / 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L or similar
    Mechanical seal configuration Single, quench, double
    Available material O-ring EPDM, FKM, FFKM
    Connections Tri-Clamp connections
    Surface finish Hygienic quality, internal welds hand polished + electropolished
    Certificates 1935/2004 EC. FDA. EAC

  • Description

    The food grade Packo stainless steel pumps of the FPP3 series are pumps made of solid, machined stainless steel 316L and are extremely suitable for high system pressure applications up to 40 bar. Typical applications can be found in reverse osmosis applications in all kind of food related applications such as whey filtration, CIP waste filtration, beer filtration, etc.

  • Downloads

FPP3 pump series

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Fully machined stainless steel, extremely smooth
  3. Large seal cavity to clean mechanical seal properly
  4. Monobloc execution with std. IEC motor with angular contact bearing.



Application areas

Monobloc execution with std. IEC motor with angular contact bearing.The Packo high pressure pumps of the FPP3 series are used primarily in the reverse osmosis (RO) applications for the filtration of, for example, contaminated CIP-water, whey, etc. They are also used as a booster pump in a variety of skids.

You will find them in just about all industries including the dairy industry, breweries, beverage industry as well as in water treatment industry.

Your benefits

  • Suitable for system pressure applications up to 40 bar
  • High pump efficiency resulting in lower energy consumption
  • Low NPSH values: less risk on cavitation
  • Electropolished: easy to clean
  • Easy construction and easy maintenance: less downtime
  • Standard components
  • Easy to install
  • 1 mechanical seal diameter for the entire range

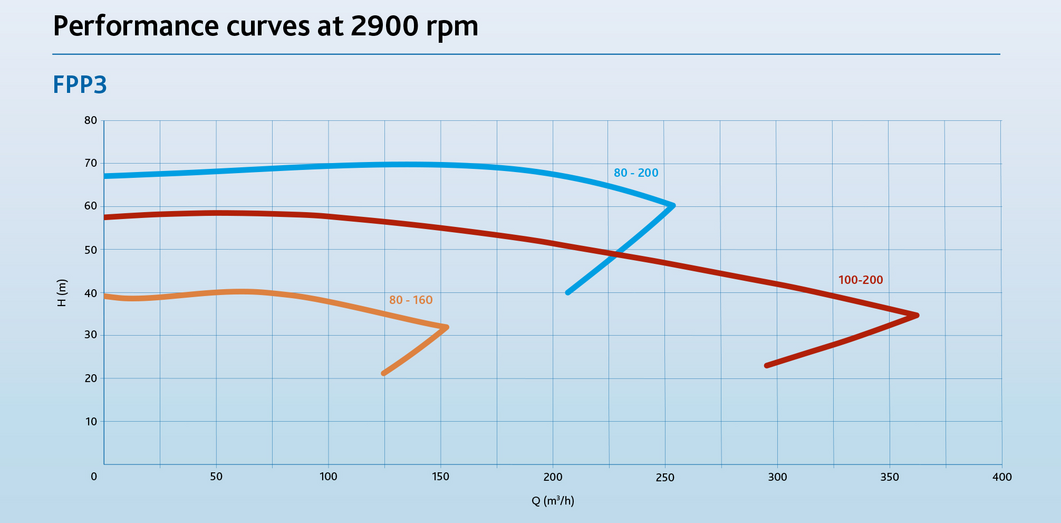

Performance Curves
