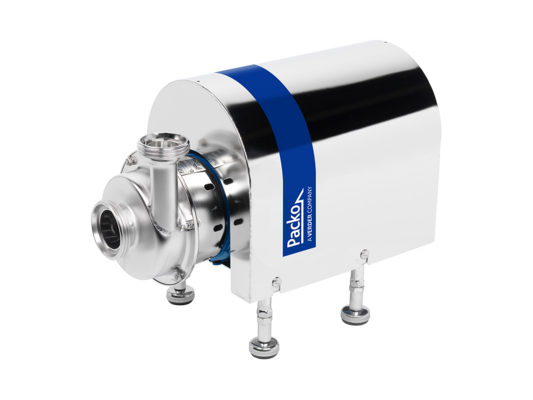

FP60
These low cost pumps have stainless steel 316L pump casings constructed in cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers in 316L. Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP60 pump series are a reliable component for your food production process.
-
Properties
Property Max. flow 40 m3/h Differential head 27 m wc Max. Inlet pressure 3 bar Viscosity 500 cP Max. temperature 95 °C Impeller type Open Max. free passage 15 mm Max. drive power 2.2 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single, quench Available material O-ring EPDM, FKM Connections Hygienic fittings Surface finish Hygienic quality, internal welds hand polished + electropolished (casing 0.8 μm - impeller 3.2 μm) Certificates 1935/2004 EC. MEI. ATEX. FDA. EAC -
Description
These low cost pumps have stainless steel 316L pump casings constructed in cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers in 316L. Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP60 pump series are a reliable component for your food production process.
Pump series FP60
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Pressed stainless steel in 2B quality plate, extremely smooth
- Large seal cavity to clean mechanical seal properly

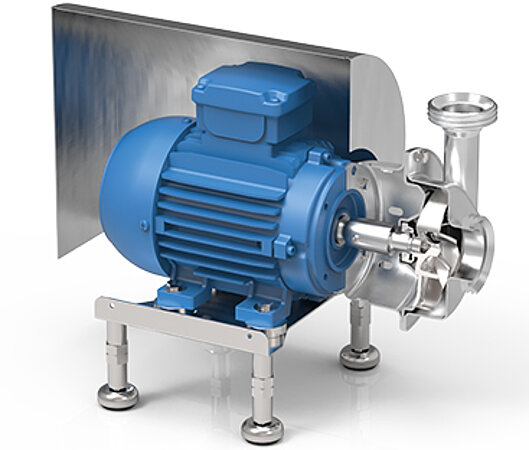

- Monobloc execution with std. IEC motors
Application areas
The FP60 food pump series are mainly used for pumping clean and slightly contaminated liquids coming from dairies, cheese factories, breweries, distilleries, beverage industry, etc.
They are often used as process pump for heat exchangers, filtration units, filling machines, brine injectors, batter machines and CIP cleaning systems.
Typical liquids are milk, whey, curd, batter, brine, beer, CIP, alcohol, etc.
Your benefits
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: easy to clean
- Easy construction and easy maintenance: less downtime
- Easy to install
- Best value for money
Performance Curves
Assembly/Disassembly Videos
Assembly video - configuration with bellow seal
Assembly video - configuration with quench and elastomer bellow seal
Disassembly video - replacement of bellow seal
