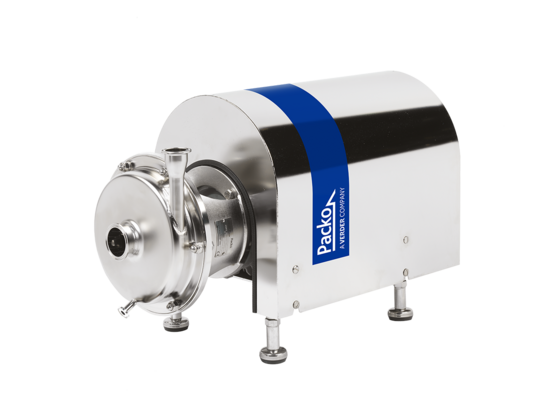

FP2+
These 3A certified pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials.Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP2+ pump series are perfectly cleanable, resulting in a reliable component for your production process.
-
Properties
Property Max. flow 110 m3/h Differential head 110 m wc Max. Inlet pressure depending on pump type up to 20 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open Max. free passage 22 mm Max. drive power 45 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single sterile, quench, double Available material O-ring EPDM, FKM, FEP-FKM, FFKM, Silicone Connections 3A approved sanitary fittings only Surface finish Hygienic quality, internal welds hand polished + electropolished (wetted parts 0.8 μm) Certificates 3A. 1935/2004 EC. FDA. USP. ATEX. MEI. EAC -
Description
These 3A certified pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials.Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP2+ pump series are perfectly cleanable, resulting in a reliable component for your production process.

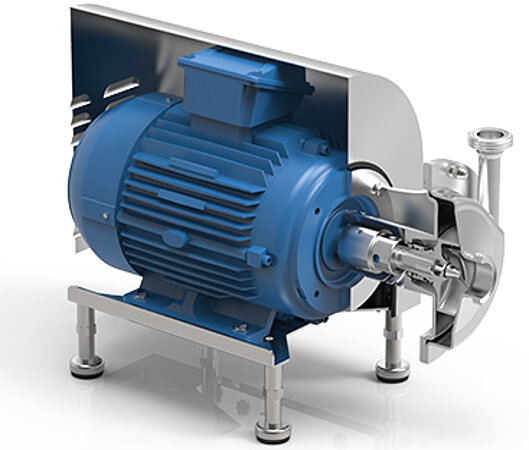

Pump series FP2+
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Pressed stainless steel in 2B quality plate, extremely smooth
- Large seal cavity to clean mechanical seal properly
- Monobloc execution with std. IEC motors
Application areas
The Packo 3A certified process pumps of the FP2+ series are used in the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc.
They are the ideal solution for filtration applications, pasteurisation, evaporating systems, yeast propagation and for CIP cleaning systems as well.
In pharmaceutical and biotech industry they are mainly used for handling Purified Water and as CIP forward pump in cleaning systems.
Your benefits
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: perfectly cleanable
- Easy construction and easy maintenance: less downtime
- Standard components
- Easy to install
- 2 mechanical seal diameters for entire range
- Robust construction

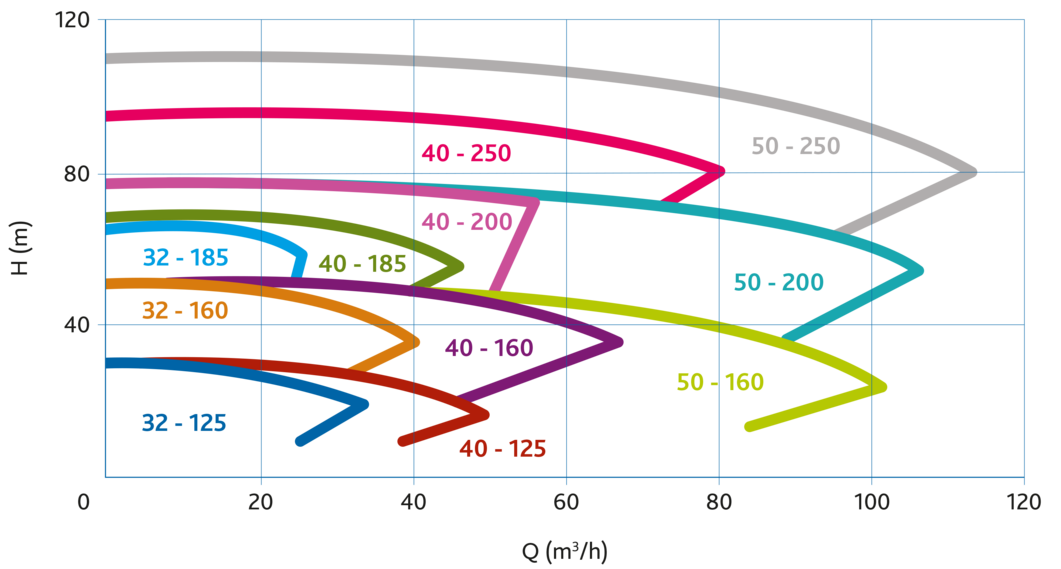

Performance Curves
@2900 RPM
Assembly and disassembly videos
Assembly video - configuration with sterile seal
Disassembly video - replacement sterile seal
Assembly video - bellows seal configuration
Assembly video - configuration with quench and bellows seal
Assembly video - configuration with double seal
