FP1
The Packo stainless steel centrifugal pumps of the FP1 series are the best “value for money” food grade pumps, mainly used for pumping clean and slightly contaminated liquids. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.
-
Properties
Property Max. flow 70 m3/h Differential head 37 m wc Max. Inlet pressure 6 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open or semi open Max. free passage 18 mm Max. drive power 5.5 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single Available material O-ring EPDM, FKM, FEP, FFKM Connections Hygienic fittings Surface finish Hygienic quality, internal welds hand polished + electropolished (casing 0.8 μm - impeller 3.2 μm) Certificates 1935/2004 EC. MEI. ATEX. FDA. EAC -
Description
The Packo stainless steel centrifugal pumps of the FP1 series are the best “value for money” food grade pumps, mainly used for pumping clean and slightly contaminated liquids. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.
Pump series FP1
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Pressed stainless steel in 2B quality plate, extremely smooth
- Large seal cavity to clean mechanical seal properly
- Monobloc execution with std. IEC motors
Application areas
FP1 pumps are mainly used for pumping clean and light contaminated products from dairies, cheese dairies, breweries, distilleries, beverage industry, etc.
They are often used as process pumps for heat exchangers, filtration units, filling machines, brine injectors, batter machines and CIP cleaning systems.
Typical fluids are milk, whey, curd, batter, brine, beer, CIP, alcohol, etc.
Your benefits
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: easy to clean
- Easy construction and easy maintenance: less downtime
- Easy to install
- Best value for money

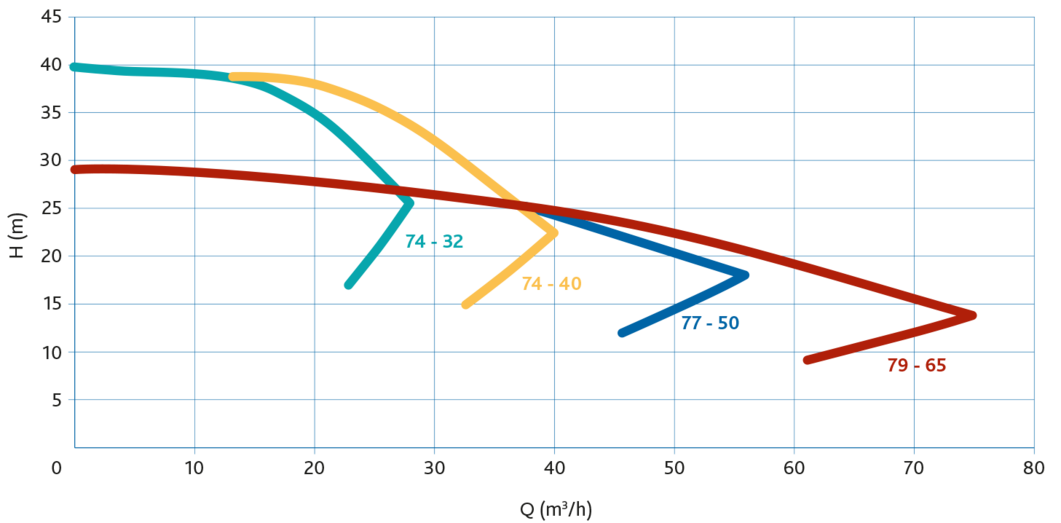

Performance Curves
@2900 RPM
Assembly and disassembly videos
Assembly video - configuration with bellow seal
Assembly video - configuration with sterile seal
Disassembly video - replacement of bellow seal
