FMS

The hygienically designed Packo multistage pumps from the FMS series are used as process pump in the most diverse applications in food, pharmaceutical and chemical industries. They are the right match for operations at moderate flows and high pressures.

  • Properties

    Property
    Max. flow 50 m3/h
    Differential head 215 m wc
    Max. Inlet pressure 10 bar
    Viscosity 250 cP
    Max. temperature 140 °C
    Impeller type Open
    Max. free passage 14 mm
    Max. drive power 45 kW
    Speed 3000 / 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L or similar
    Mechanical seal configuration Single, quench, double
    Available material O-ring EPDM, FKM
    Connections Hygienic fittings
    Surface finish Hygienic quality, internal welds hand polished + electropolished
    Certificates 1935/2004 EC. ATEX. FDA. EAC

  • Description

    The hygienically designed Packo multistage pumps from the FMS series are used as process pump in the most diverse applications in food, pharmaceutical and chemical industries. They are the right match for operations at moderate flows and high pressures.

  • Downloads

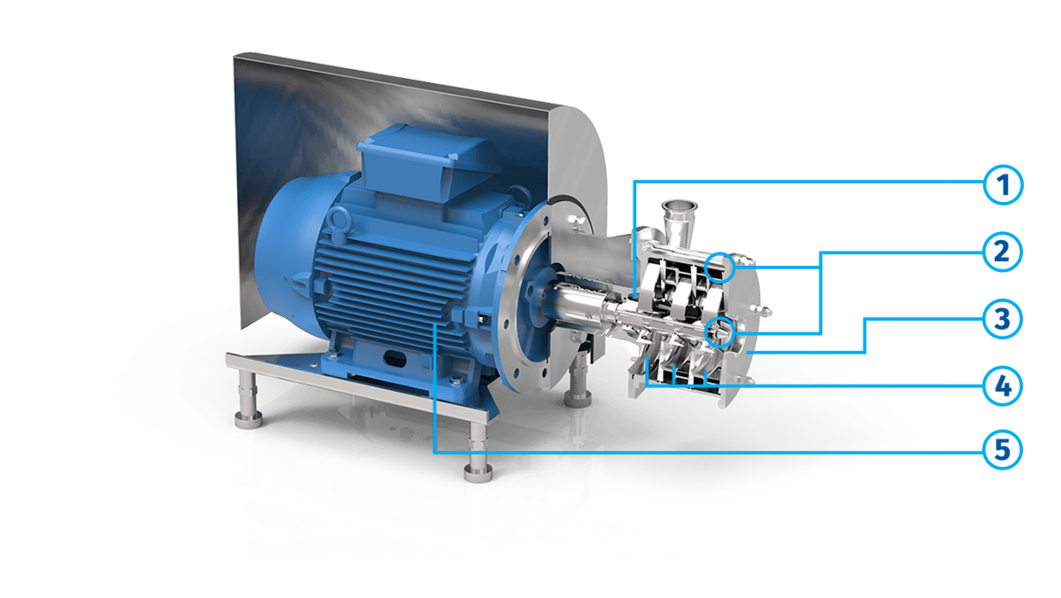

Pump series FMS

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Investment cast design
  3. Large seal cavity to clean mechanical seal properly
  4. Open impellers: no axial forces on motor bearings
  5. Monobloc execution with std. IEC motors

Application areas

For use in food, brew, beverage, pharmaceutical and chemical industries, as transfer and mixing pump for liquid food products, drinks, medicines, lotions, etc.

Typical applications: process pump for plate heat exchangers, pasteurizer systems, filters, filling machines, mixers, deaerators, carbonators and high pressure cleaning systems.



Your benefits

  • Ideal for operation at moderate flow rate and high pressures
  • High pump efficiency resulting in lower energy consumption
  • Low NPSH values: less risk on cavitation
  • Electropolished: easy to clean
  • Easy construction and easy maintenance: less downtime
  • Standard components
  • Easy to install

Performance Curves
