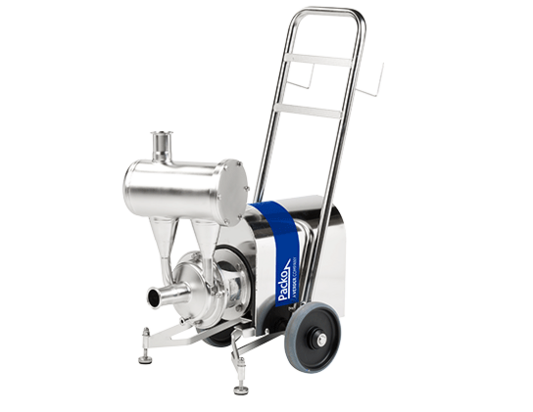

CRP
The pumps of the CRP series are perfectly cleanable air handling pumps and are mainly used to pump a mixture of liquid and air. Constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open or closed investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the CRP pump series are perfectly cleanable, resulting in a reliable component for your production process.
-
Properties
Property Max. flow 150 m3/h Differential head 75 m wc Max. Inlet pressure 13 bar Viscosity 10 cP Max. temperature 140 °C Impeller type Open or closed Max. free passage 22 mm Max. drive power 22 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, sterile, quench, double Available material O-ring EPDM, FKM, FEP-FKM, FFKM or similar Connections Hygienic fittings only Surface finish Hygienic quality, internal welds hand polished + electropolished (casing: 0.8 μm + impeller: 3.2 μm) Certificates 1935/2004 EC. FDA. USP. ATEX. EAC -
Description
The pumps of the CRP series are perfectly cleanable air handling pumps and are mainly used to pump a mixture of liquid and air. Constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open or closed investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the CRP pump series are perfectly cleanable, resulting in a reliable component for your production process.
Pump series CRP

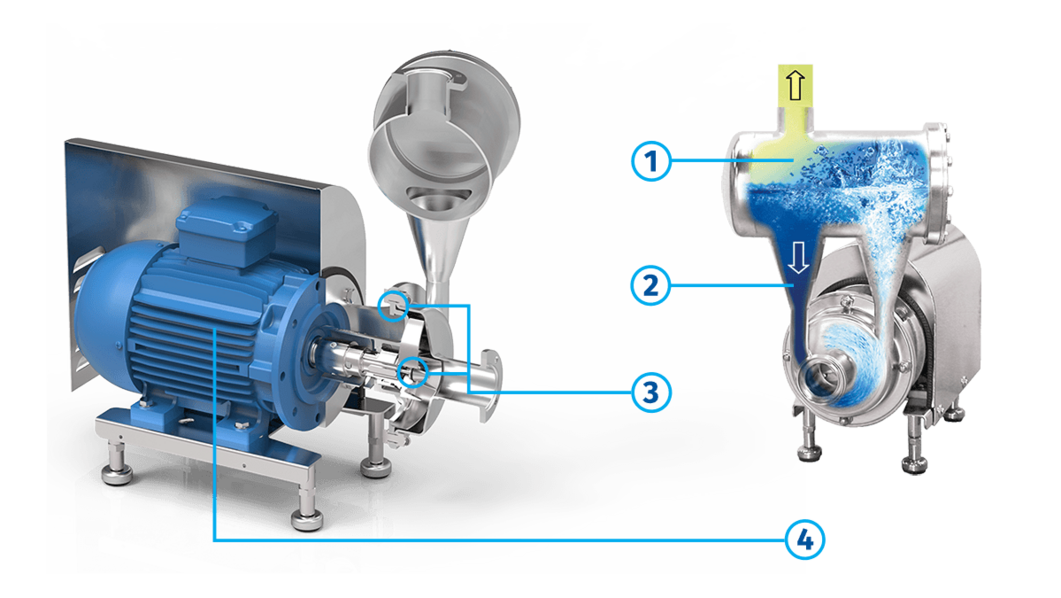

- Unique air handling design with cleanable air separator
- By-pass to casing taking care about air evacuation unique air handling design with cleanable air separator
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Monobloc execution with std. IEC motors
Application areas
Thanks to its unique air handling design based on a standard centrifugal pump, the CRP series are particularly suitable as a CIP return pump, as well as for unloading applications.
They are used in the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc.
Your benefits
- Higher pump efficiency compared with a classic liquid ring pump
- Low NPSH values: less risk on cavitation
- Electropolished: perfectly cleanable
- Easy construction and easy maintenance: less downtime
- Construction without non-return valve
- Easy to install
- 2 mechanical seal diameters for the entire range
- Robust construction
- Limited noise level
Performance Curves
Assembly and disassembly videos
Assembly video - configuration with sterile seal
