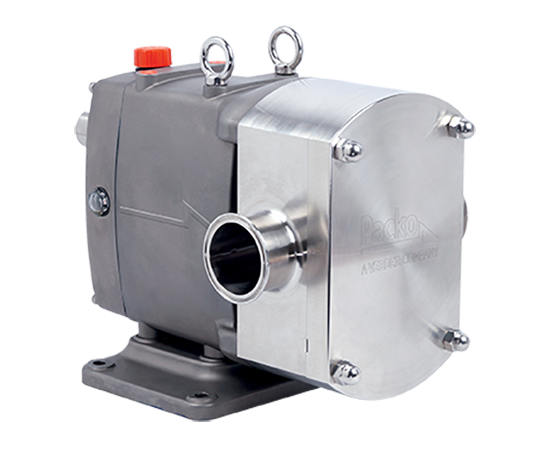

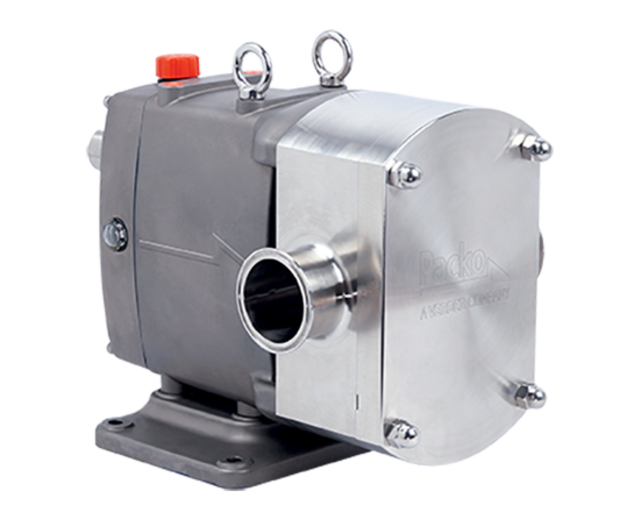

Packo ZP
Every feature on the ZP range has been specifically designed to make dismantling (whether for inspection, cleaning, or maintenance) quicker, easier and cheaper. What’s more, the forward-seal position places the seals in direct contact with CIP fluids.
Circumferential Piston Pumps for the most difficult applications
- EC1935/2004 certified, EHEDG and 3A versions available
- Unbeatably easy CIP cleanability
- Faster maintenance
- Extended service intervals
Packo ZP types
View
 |
|
|
|
|
|
|
ZP015 |
ZP018 |
ZP030 |
ZP060 |
ZP130 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
50.4 l/min
|
96 l/min
|
182 l/min
|
444 l/min
|
708 l/min
|
| Max. discharge pressure |
15 bar
|
12 bar
|
10 bar
|
15 bar
|
8 bar
|
| Port |
38 mm
|
38 mm
|
50 mm
|
63 mm
|
76 mm
|
| Speed |
800 rpm
|
800 rpm
|
700 rpm
|
600 rpm
|
600 rpm
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Shorter downtimes, higher flexibility
- Pump can stay in piping during replacing seals thanks to front loaded seals
- No need to open gearbox for adjusting axial clearances between rotors and casing.
- Rotors can be changed without timing.
- The oil-lubricated bearing pedestal avoids frequent relubrication of the bearings with grease. This reduces maintenance and increases operational reliability. In addition, oil reduces friction values, resulting in less heat generation and better efficiency
- Top or bottom shaft can be switched without gearbox disassembly
- Pumps can be mounted with both horizontal and vertical port connections
- Heating jackets for casing and front cover, pressure relieve valve, by-pass valve and many more options available.
Performance Curves
|
Type |
Litre / revolution |
Max pressure |
Connections (mm) |
Max rpm |
|
ZP/015 |
0.063 |
15 |
40 |
800 |
|
ZP/018 |
0.12 |
12 |
40 |
800 |
|
ZP/030 |
0.26 |
10 |
50 |
700 |
|
ZP/060 |
0.74 |
15 |
65 |
600 |
|
ZP/130 |
1.18 |
8 |
80 |
600 |
