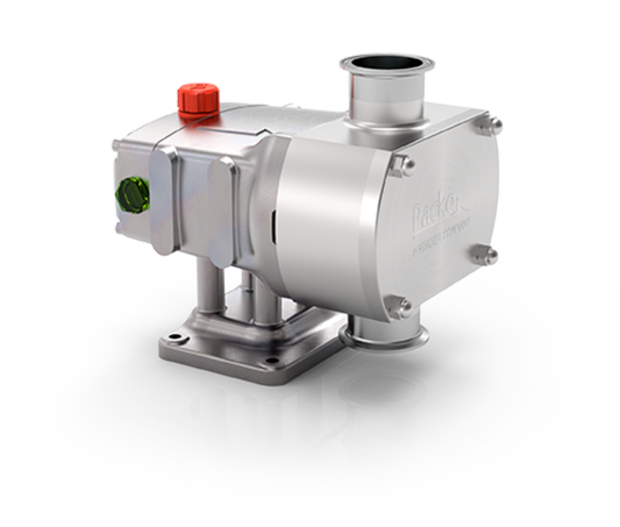

Packo ZLC
The Packo ZLC lobe pump pharmaceutical process pump is 3A certified. These perfectly cleanable pumps can be applied in the most demanding sterile applications in the pharmaceutical, biotech and cosmetic industry. All wetted parts in stainless steel 316L, 100% non porous and extremely smooth. Thanks to its crevice-free design and electropolishing as a final surface treatment, the ZLC pump is a perfectly cleanable and highly reliable component into your production process.
The rotary lobe pump for the pharmaceutic industry
- Fully drainable design
- Electropolished: perfectly cleanable
- Pumps in 1.4435 with delta ferrite < 3% available
- Easy & robust construction and easy maintenance: less downtime
Packo ZLC types
View
 |
|
|
|
|
|
|
|
|
|
|
|
ZLC/105 |
ZLC/110 |
ZLC/115 |
ZLC/120 |
ZLC/220 |
ZLC/225 |
ZLC/330 |
ZLC/340 |
ZLC/440 |
ZLC/450 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
42 l/min
|
83 l/min
|
125 l/min
|
133 l/min
|
200 l/min
|
333 l/min
|
500 l/min
|
700 l/min
|
1133 l/min
|
1670 l/min
|
| Max. discharge pressure |
20 bar
|
20 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
| Port |
25 mm
|
25 mm
|
40 mm
|
50 mm
|
50 mm
|
65 mm
|
80 mm
|
100 mm
|
100 mm
|
125 mm
|
| Speed |
1000 rpm
|
1000 rpm
|
800 rpm
|
800 rpm
|
700 rpm
|
700 rpm
|
600 rpm
|
600 rpm
|
500 rpm
|
500 rpm
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
For the most demanding sterile applications
- Fully drainable design
- Different Rotor types available
- FDA and USP certified seals
- Product wetted parts in 316L 1.4404 (standard) or 1.4435 (optional)
- Mechanical seals placed in flushed area for best cleanability
- Gearbox in investment cast stainless steel available
Performance Curves
|
Type |
Litre / revolution |
Max pressure |
Connections (mm) |
Max rpm |
|
ZLC/105 |
0.02 |
20 |
25 |
1.000 |
|
ZLC/110 |
0.05 |
20 |
25 |
1.000 |
|
ZLC/115 |
0.12 |
12 |
40 |
800 |
|
ZLC/120 |
0.21 |
8 |
50 |
800 |
|
ZLC/220 |
0.4 |
12 |
50 |
700 |
|
ZLC/225 |
0.62 |
8 |
65 |
700 |
|
ZLC/330 |
1.02 |
12 |
80 |
600 |
|
ZLC/340 |
1.44 |
8 |
100 |
600 |
|
ZLC/440 |
2.27 |
12 |
100 |
500 |
|
ZLC/450 |
3.34 |
8 |
125 |
500 |
