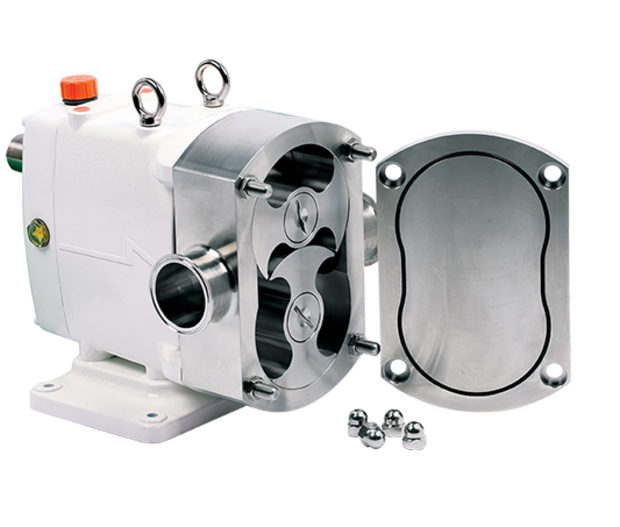

Packo ZL
ZL series are designed for broad applications spectrum covering dairies, foods, beverages, pharmaceuticals, cosmetics, bakeries, detergents, liquors and chemical industries. They are designed specifically for conveying fluids in the low to high viscosity range with gentle product handling.
Each series of the Packo rotary lobe pumps is, in its field, a state-of-the-art. The pumps can be fitted with a variety of features and rotors to adapt to almost all hygienic pumping tasks. The pumps can be customized for an optimum function or performance to your process.
Superior hygienic performance
- Certified to EHEDG, 3A and EC1935/2004
- Improved CIP performance
- Faster maintenance / higher flexibility
- Universal mounting
Packo ZL types
View
 |
|
|
|
|
|
|
|
|
|
 |
|
|
ZL/105 |
ZL/110 |
ZL/115 |
ZL/120 |
ZL/220 |
ZL/225 |
ZL/330 |
ZL/340 |
ZL/440 |
ZL/450 |
ZL/560 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
20 l/min
|
50 l/min
|
96 l/min
|
168 l/min
|
287 l/min
|
434 l/min
|
612 l/min
|
864 l/min
|
1135 l/min
|
1670 l/min
|
3600 l/min
|
| Max. discharge pressure |
20 bar
|
20 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
12 bar
|
8 bar
|
4 bar
|
| Port |
25 mm
|
25 mm
|
38 mm
|
50 mm
|
50 mm
|
63 mm
|
76 mm
|
100 mm
|
100 mm
|
125 mm
|
150 mm
|
| Speed |
1000 rpm
|
1000 rpm
|
800 rpm
|
800 rpm
|
700 rpm
|
700 rpm
|
600 rpm
|
600 rpm
|
500 rpm
|
500 rpm
|
300 rpm
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Features Packo Lobe Pumps
- With high grade 0.6㎛ Ra surface finish, unique seal and casing design, ZL series are suitable for Cleaning In Place (CIP) and offer exceptional levels of hygiene.
- Wetted parts are made of SS 316L.
- Our broad range of seal options such as mechanical seal, O-ring seal and Lip seal provides optimal solution for your need and application.
- Optimal CIP is realized with O-ring position which prevent dead corners between front cover and casing.

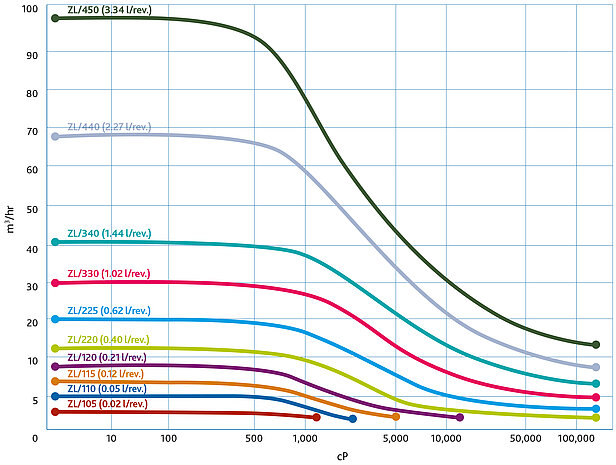

Performance Curves
|
Type |
Litre / revolution |
Max pressure |
Connections (mm) |
Max rpm |
|
ZL/105 |
0.02 |
20 |
25 |
1.000 |
|
ZL/110 |
0.05 |
20 |
25 |
1.000 |
|
ZL/115 |
0.12 |
12 |
40 |
800 |
|
ZL/120 |
0.21 |
8 |
50 |
800 |
|
ZL/220 |
0.4 |
12 |
50 |
700 |
|
ZL/225 |
0.62 |
8 |
65 |
700 |
|
ZL/330 |
1.02 |
12 |
80 |
600 |
|
ZL/340 |
1.44 |
8 |
100 |
600 |
|
ZL/440 |
2.27 |
12 |
100 |
500 |
|
ZL/450 |
3.34 |
8 |
125 |
500 |
