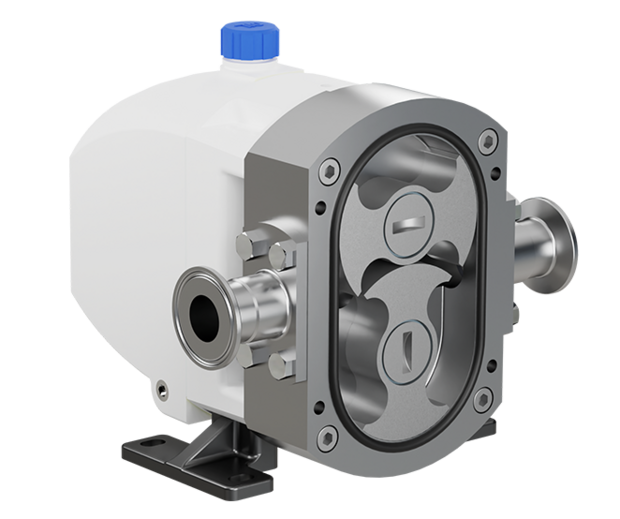

HP/LH series Hy~Line(+)
Hy~Line Rotary Lobe pumps are robust, durable pumps designed for long life in demanding applications. Modular construction, using interchangeable ports and feet, enables the production of horizontal or vertical pumps with a wide range of seal, port and rotor configurations on short lead times.
High efficiency and perfectly cleanable
- Certified to 3A and EC1935/2004
- Improved CIP performance
- Faster maintenance / higher flexibility
- Universal mounting
HP/LH series Hy~Line(+) types
View
 |
|
|
|
|
|
|
|
|
|
|
|
|
HP32 |
HP34 |
HP42 |
HP44 |
HP52 |
HP54 |
HP62 |
HP64 |
LH72 |
LH74 |
LH76 |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Port Size Inlet/ Outlet Reduced |
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
2" (50mm)
|
N/A
|
N/A
|
N/A
|
N/A
|
| Port Size Inlet/ Outlet Standard |
3/4" (19 mm)
|
1" (25mm)
|
1" (25mm)
|
1 1/12" (38mm)
|
1 1/12" (38mm)
|
2" (50mm)
|
2 1/2" (63mm)
|
3" (76mm)
|
3" (76mm)
|
4" (100mm)
|
4" (100mm)
|
| Port Size Inlet/ Outlet Enlarged |
1" (25 mm)
|
1 1/2" (38mm)
|
1 1/12" (38mm)
|
2" (50mm)
|
2" (50mm)
|
3" (70mm)
|
3" (76mm)
|
4" (100mm)
|
4" (100mm)
|
6" (152mm)
|
6" (152mm)
|
| Displacement US Gallons (litres) |
0.92 Gallons (3.5 litre) @ 100 revs
|
1.85 US gal (7 litre) @ 100revs
|
3.25 Gallons (12.3 litre) @ 100 revs
|
5.39 Gallons (20.4 litre) @ 100 revs
|
7.00 Gallons (26.5 litre) @ 100 revs
|
12.02 Gallons (45.5 litre) @ 100 revs
|
16.9 Gallons (64 litre) @ 100 revs
|
25.10 Gallons (95 litre) @ 100 revs
|
32.5 Gallons (123 litre) @ 100 revs
|
54.15 Gallons (205 litre) @ 100 revs
|
79.65 Gallons (301.5 litre) @ 100 revs
|
| Flow Rate US Gallons (litres) |
13.7 GPM (52 LPM)
|
27.7 US gal (105lpm)
|
32.5 GPM (123 LPM)
|
53.9 GPM (204 LPM)
|
70.0 GPM (265 LPM)
|
120.2 GPM (455 LPM)
|
121.8 GPM (461 LPM)
|
180.7 GPM (684 LPM)
|
220.8 GPM (836 LPM)
|
324.9 GPM (1230 LPM)
|
477.9 GPM (1809 LPM)
|
| Operating Pressure |
217 psi (15 bar)
|
116psi (8bar)
|
217 psi (15 bar)
|
116 psi (8 bar)
|
217 psi (15 bar)
|
116 psi (8 bar)
|
217 psi (15 bar)
|
116 psi (8 bar)
|
217 psi (15 bar)
|
116 psi (8 bar)
|
72 psi (5 bar)
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Product Features HP Series Hy~Line+
- Flow rates up to 108m³/hr
- Pressures up to Up to 15bar (205 psi)
- Temperature range: -30ºC to +140ºC
- Liquid viscosity range: 1 to 1,000,000 centipoise
- Hygienic - American 3A standards
- Gentle pumping of viscous, delicate and liquids with soft particles
- Easy to clean, easy to maintain
- AISI316 stainless steel parts which come in contact with the liquid
- Bi-wing (Scimitar) or Tri-Lobe rotors
