NP60
The Packo stainless steel centrifugal pumps of the NP60 series are low cost industrial pumps. They have investment cast open impellers. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.
-
Properties
Property Max. flow 40 m3/h Differential head 27 m wc Max. Inlet pressure 3 bar Viscosity 500 cP Max. temperature 95 °C Impeller type Open Max. free passage 15 mm Max. drive power 2.2 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single, quench Available O-ring Materials EPDM, FKM Connections BSP fittings. flanges according to EN1092-1/02. smooth tubes Surface finish Industrial, internal welds not hand polished, electropolished Certificates ATEX. MEI. EAC -
Description
The Packo stainless steel centrifugal pumps of the NP60 series are low cost industrial pumps. They have investment cast open impellers. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.

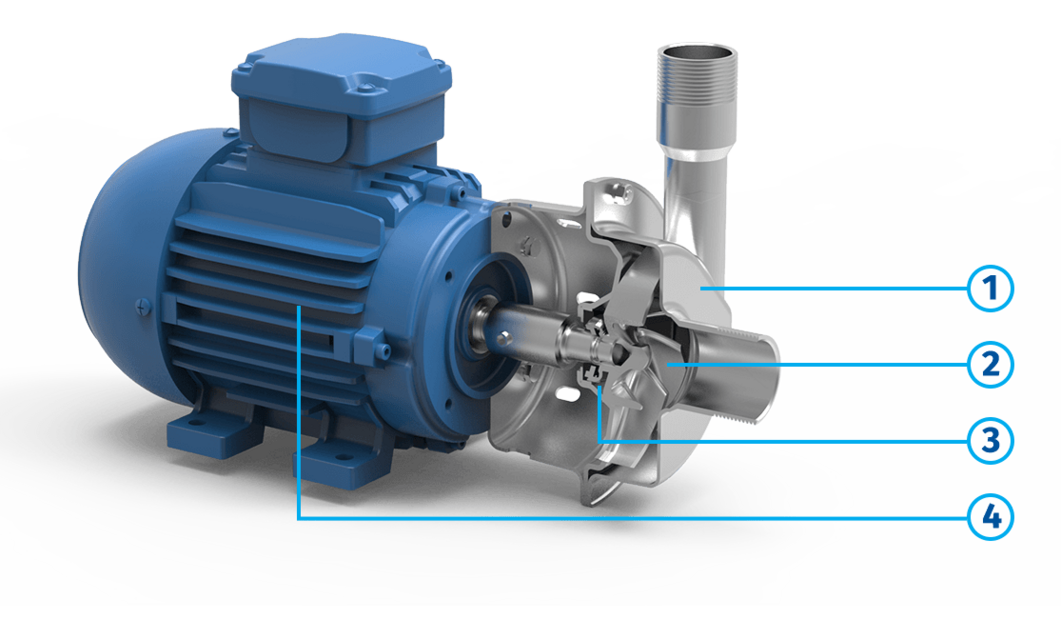

Pump series NP60
- Pressed stainless steel with minimum thickness of 2 mm
- Investment cast open impellers
- Large seal cavity to guarantee liquid circulation around the seal
- Monobloc execution with std. IEC motors
Application area
NP60 pumps are mainly used for pure and slightly contaminated liquids with a maximum viscosity of 500 cP.
They are often used as process pumps for washing textiles, for water treatment, as well as for pumping solvents, alcohols and chemicals
Your benefits
- High pump efficiency resulting in low energy consumption
- Low NPSH values, less risk of cavitation
- Electro-polished: high corrosion resistance
- Simple construction and easy maintenance: less downtime
- Easy to install
- Solid impellers compared to cheaper spot sealed versions
Performance Curves
Assembly/Disassembly Videos
Disassembly video - replacement of bellow seal
Assembly video - configuration with quench and elastomer bellow seal
Disassembly video - replacement of bellow seal
