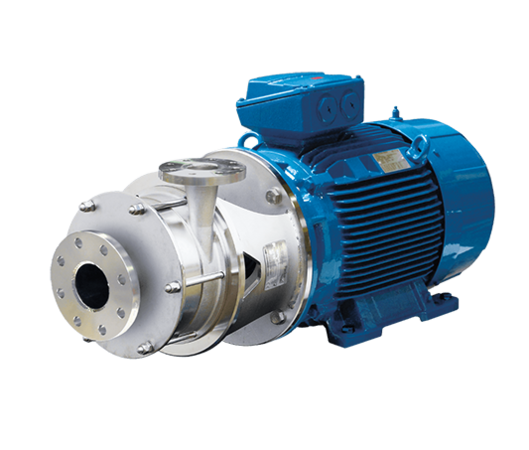

NMS
The Packo stainless steel multi-stage pumps of the NMS series can be used as a process pump under the most severe applications in the food and general industry. They can be used as a feeding pump or as a booster in some of the applications and are ideal for handling moderate flow rates at high pressure with a high pump efficiency (low energy cost). These process pumps are typically used for plate heat exchangers, filters, filling machines, high pressure CIP systems, etc.
-
Properties
Property Max. flow 50 m3/h Differential head 215 m wc Max. Inlet pressure 10 bar Viscosity 250 cP Max. temperature 140 °C Impeller type Open Max. free passage 14 mm Max. drive power 45 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, single balanced, quench, double Available O-ring materials EPDM, FKM Connections Flanges acc. to EN1092-1/01. Tri-Clamp fittings. etc. Surface finish Industrial finish: welds are not hand polished. Final surface treatment: electropolished Certificates 1935/2004 EC. FDA. ATEX. EAC -
Description
The Packo stainless steel multi-stage pumps of the NMS series can be used as a process pump under the most severe applications in the food and general industry. They can be used as a feeding pump or as a booster in some of the applications and are ideal for handling moderate flow rates at high pressure with a high pump efficiency (low energy cost). These process pumps are typically used for plate heat exchangers, filters, filling machines, high pressure CIP systems, etc. -
Downloads
- Packo_NMS_INT_EN_Datasheet.pdf
- Packo_INT_English_Brochure.pdf
- Packo_Industrial Pumps_Disassembly-assembly FMS-NMS 185_English_Manual.pdf
- Packo_Hygienic Pumps_Disassembly-assembly_FMS-NMS 125_English_Manual.pdf
- Packo_Hygienic Pumps_Disassembly-assembly FMS-NMS 185__English_Manual.pdf
- Packo_Industrial Pumps_Disassembly-assembly_Manuals_2018 FMS-NMS 125_English_Manual.pdf
Pump series NMS

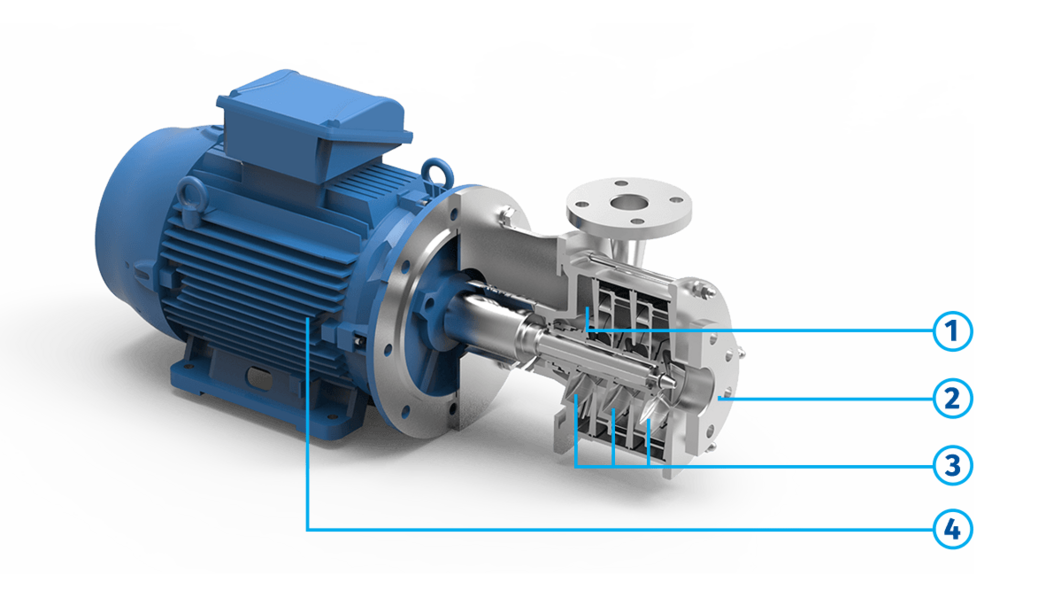

The Packo multistage pumps from the NMS series are equipped with open investment cast impellers and pump casings. They are the right match for operations at moderate flows and high pressures.
- Large seal cavity to guarantee liquid circulation around the seal
- Solid design thanks to investment cast pump casings and impellers
- Open impellers: no axial forces on motor bearings
- Monobloc execution with std. IEC motors
Application areas
For use in food, brew, beverage, pharmaceutical and chemical industries, as transfer and mixing pump for liquid food products, drinks, medicines, lotions, etc.
Typical applications: process pump for plate heat exchangers, pasteurizer systems, filters, filling machines, mixers, deaerators, carbonators and high pressure cleaning systems.
Your benefits
- Ideal for operation at moderate flow rate and high pressures
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: higher resistance against corrosion
- Easy & robust construction and easy maintenance: less downtime
- Standard components
- Easy to install
- Open impellers: longer bearing life
