MWP2

These robust pumps are made of thick walled cast duplex stainless steel materials and have open impellers. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process. The Packo pumps of the MWP2 series are used in all kinds of industries for the transfer of erosive / abrasive liquids.

  • Properties

    Property
    Max. flow 50 m3/h
    Differential head 60 m wc
    Max. Inlet pressure 12 bar
    Viscosity 1000 cP
    Max. temperature 140 °C
    Impeller type Open
    Max. free passage 22 mm
    Max. drive power 11 kW
    Speed 3000 / 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Duplex pump casings
    Mechanical seal configuration single bellow, quench, double
    Available O-ring materials EPDM, FKM, Silicone
    Connections BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges. smooth tubes
    Surface finish Industrial finish: welds are not hand polished. Final surface treatment: electropolished
    Certificates ATEX. EAC

  • Description

    These robust pumps are made of thick walled cast duplex stainless steel materials and have open impellers. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process. The Packo pumps of the MWP2 series are used in all kinds of industries for the transfer of erosive / abrasive liquids.

  • Downloads

Pump series MWP2

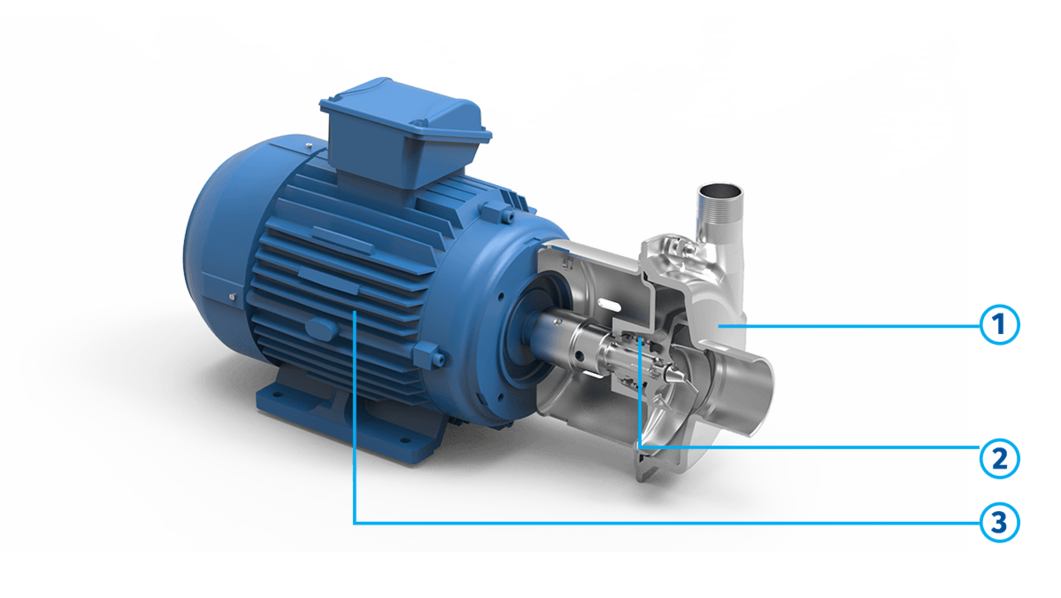

  1. Solid investment cast duplex pump casing
  2. Large seal cavity to guarantee liquid circulation around the seal
  3. Monobloc execution with std. IEC motors



Application areas

These robust process pumps are often used as process pump for circulation of liquid feeding for animals, washing installations in potato and vegetable industry, diatomaceous earth (kieselgur) for filtration purposes, etc.

Your benefits

  • Wear resistant duplex pump casing ideal for handling abrasive liquids.
  • Low NPSH values: less risk on cavitation
  • Electropolished: higher resistance against corrosion
  • Easy and robust construction and easy maintenance: less downtime
  • Easy to install
  • Solid impellers compared to low cost spot welded versions
  • 1 mechanical seal diameter for entire range

Performance Curves
