MSP2

These robust pumps have cast pump casings and open investment cast impellers in stainless steel 316L. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process. They can lift liquid from a lower level into the pump.

Properties

Property
Max. flow	70 m3/h
Differential head	40 m wc
Max. Inlet pressure	3 bar
Viscosity	10 cP
Max. temperature	140 °C
Impeller type	Open
Max. free passage	22 mm
Max. drive power	11 kW
Speed	3000 / 3600 rpm
Available frequency	50 / 60 Hz
Materials wetted parts	Stainless steel 316L or similar
Mechanical seal configuration	Single bellow, single balanced, quench, double
Available O-ring materials	EPDM, FKM, FFKM
Connections	Hygienic fittings. BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges
Surface finish	Industrial finish: welds are not hand polished. Final surface treatment: electropolished
Certificates	1935/2004 EC. FDA. EAC. ATEX

Description

These robust pumps have cast pump casings and open investment cast impellers in stainless steel 316L. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process. They can lift liquid from a lower level into the pump.
Downloads
- Packo_MSP2_INT_EN_Datasheet.pdf
- Packo_Industrial_Brochure_EN.pdf

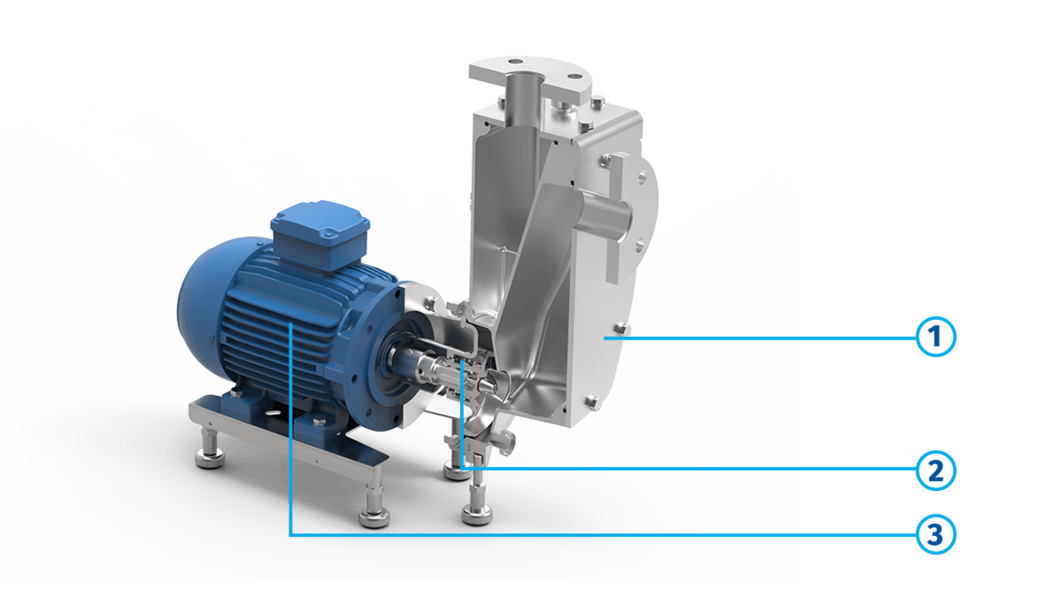

Pump series MSP2

Solid design thanks to investment cast pump casings and impellers
Large seal cavity to guarantee liquid circulation around the seal
Monobloc execution with std. IEC motors

Application areas

These robust self-priming pumps are often used for handling pure and slightly contaminated liquids, they are often used for unloading applications as well as for CIP return, etc.

The Packo pumps of the MSP2 series are self-priming pumps used in a big variety of industries.
