IML

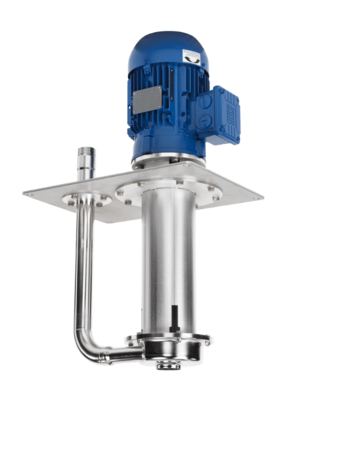

The Packo submersible cantilever pump series IML are designed for installation in a sump or tank, having only the casing and impeller submerged. Because the absence of a mechanical seal and slide bearing in contact with the liquid, the cantilever pumps are maintenance friendly and reduce the downtime.These robust pumps have stainless steel 316L pressed or investment cast pump casings and can be equipped with open, semi-open, closed and vortex impellers. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.Available in NP, ICP, MCP, IFF and MFF version with open, semi-open, closed or vortex impellers.

  • Properties

    Property
    Max. flow 1000 m3/h
    Differential head 60 m wc
    Max. Inlet pressure -
    Viscosity 1000 cP
    Max. temperature 200 °C
    Impeller type Open. semi-open. closed or vortex
    Max. pump length 500 mm
    Max. free passage 45 mm
    Max. drive power 132 kW
    Speed 3000/3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L or similar
    Mechanical seal configuration No seal - cantilever
    Available O-ring materials EPDM, FKM
    Connections Hygienic fittings. BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges
    Surface finish Industrial, welds not hand polished, electropolished
    Certificates 1935/2004 EC. FDA. EAC. ATEX

  • Description

    The Packo submersible cantilever pump series IML are designed for installation in a sump or tank, having only the casing and impeller submerged. Because the absence of a mechanical seal and slide bearing in contact with the liquid, the cantilever pumps are maintenance friendly and reduce the downtime.These robust pumps have stainless steel 316L pressed or investment cast pump casings and can be equipped with open, semi-open, closed and vortex impellers. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.Available in NP, ICP, MCP, IFF and MFF version with open, semi-open, closed or vortex impellers.

  • Downloads

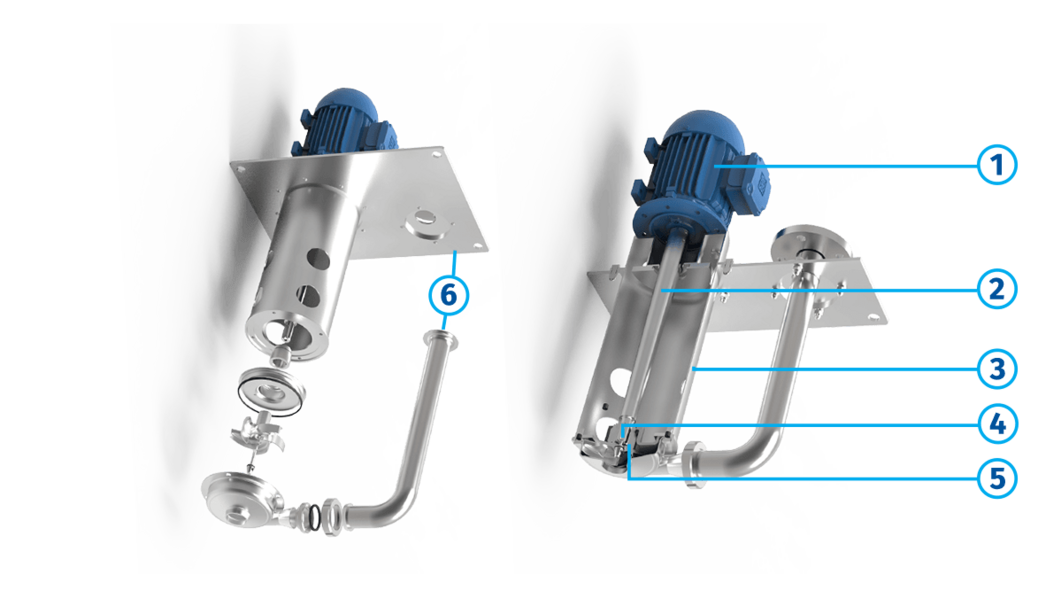

Pump series IML

  1. Use of standard IEC motors
  2. Tapered shaft, fully machined
  3. High strength column support pipe. Rigidly maintains alignment between motor and casing. Protects pump shaft.
  4. Cantilever design = no mechanical seals, no plain bearings. Reduced downtime and operating costs. No bottom bearing, no oil or water pipes required to lubricate these bearings.
  5. Renewable “labyrinth” shaft sleeve to minimize blow-back of liquid around the shaft. Additional shaft protection against abrasive liquids.
  6. Optional: stainless steel base plate and outlet pipe

Application areas

They are used in applications for liquids which are difficult to seal with a mechanical seal.

The Packo submersible cantilever pump series IML are used in a wide range of industries and applications such as metal finishing industry, industrial spray washers, water treatment, galvanizing and coating industry, chemical industry, etc.

They are handling degreasing, pickling & phosphatizing liquids, slurries, hot oils, process and industrial wastes, corrosive liquids, condensate, etc.

Your benefits

  • Cantilever design = leakage free, no seals and plain bearings
  • Sealless pump: reducing downtime and operating costs
  • Not sensitive for dry running
  • Easy construction
  • Electropolished: higher resistance against corrosion and sticky liquids
  • Robust design
  • Available with different impellers

Performance Curves
