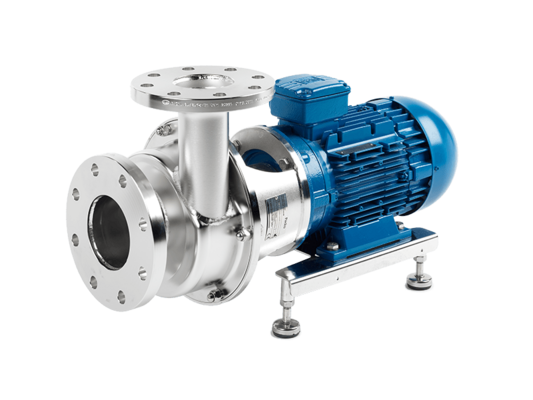

IFF

These robust pumps have stainless steel 316L cast pump casings and closed or channel investment cast impellers constructed in duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.

Properties

Property
Max. flow	360 m3/h
Differential head	35 m wc
Max. Inlet pressure	13 bar
Viscosity	500 cP
Max. temperature	140 °C
Impeller type	Open or vortex
Max. free passage	35 mm
Max. drive power	90 kW
Speed	1500 / 1800 rpm
Available frequency	50 / 60 Hz
Materials wetted parts	Stainless steel 316L or similar
Mechanical seal configuration	Single bellow, single balanced, quench, double, pressurized barrier
Available O-ring materials	EPDM, FKM, FEP-FKM
Connections	BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges
Surface finish	Industrial finish: welds are not hand polished. Final surface treatment: electropolished
Certificates	1935/2004 EC. FDA. EAC. ATEX

Description

These robust pumps have stainless steel 316L cast pump casings and closed or channel investment cast impellers constructed in duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.
Downloads
- Packo_IFF_US_EN_Datasheet.pdf
- Packo_Industrial_Brochure_EN.pdf

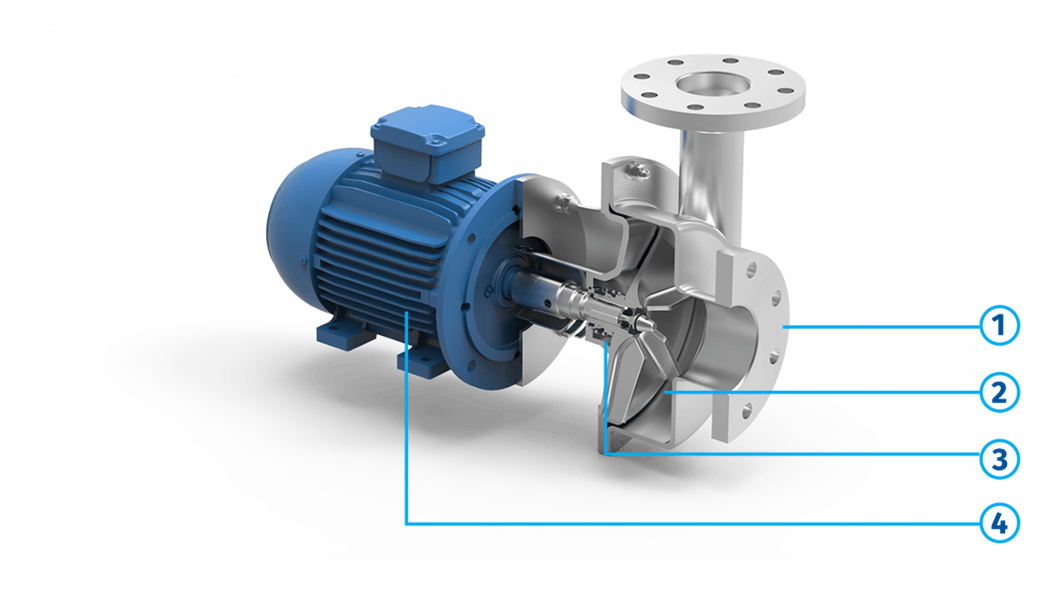

Pump series IFF

Pressed stainless steel, pump casing thickness up to 8 mm, back plate up to 30 mm
Large clearance between impeller and pump casing
Large seal cavity to guarantee liquid circulation around the seal
Monobloc execution with std. IEC motors

Application areas

They are often used as process pump for contaminated water as well as for CIP cleaning systems, filtration of wine, mash, beer, whey and blanching of vegetables. Typical liquids: mash, wort, process and contaminated water, biodiesel, bioethanol, alcohols, CIP, biogas, etc.
