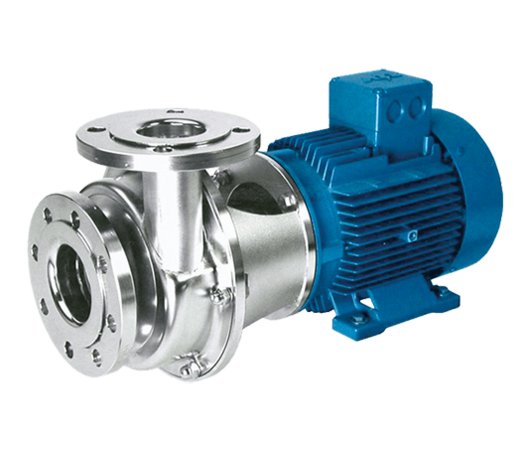

ICP3
These robust pumps have stainless steel 316L pump casings constructed in thick cold rolled plate and have closed investment cast impellers in duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.
-
Properties
Property Max. flow 320 m3/h Differential head 120 m wc Max. Inlet pressure 15 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Closed with back vanes and balancing holes Max. free passage 21 mm Max. drive power 90 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, single balanced, quench, double, pressurized barrier Available O-ring materials EPDM, FKM, FEP-FKM, FFKM, Silicone Connections BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges. smooth tubes Surface finish Industrial finish: welds are not hand polished. Final surface treatment: electropolished Certificates 1935/2004 EC. FDA. ATEX. MEI. EAC -
Description
These robust pumps have stainless steel 316L pump casings constructed in thick cold rolled plate and have closed investment cast impellers in duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.

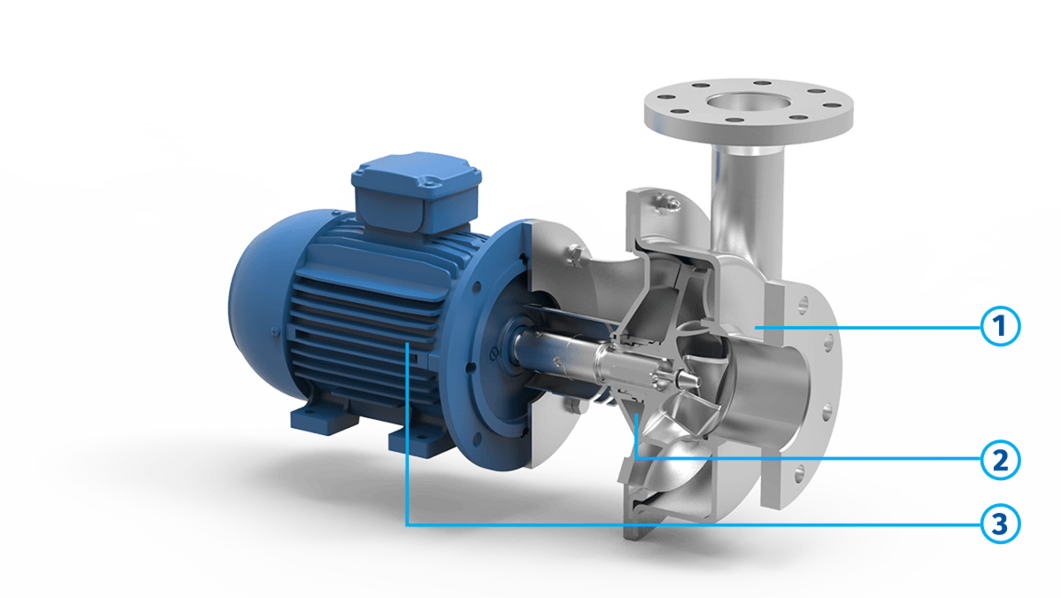

Pump series ICP3
- Pressed stainless steel, pump casing thickness up to 8 mm, back plate up to 30 mm
- Large seal cavity to guarantee liquid circulation around the seal
- Monobloc execution with std. IEC motors
Application areas
The Packo pumps of the ICP3 series are used in a wide range of industries and applications.
You can find them in just about all industries such as the vegetable industry, breweries, water treatment and the textile industry, as well as in e.g. applications for biogas, biodiesel and bioethanol.
Typical liquids: blanching water, mash, wort, process water and contaminated water, biodiesel, bioethanol, alcohols, CIP, biogas, etc.
Your benefits
- High pump efficiency resulting in low energy consumption
- Low NPSH values, less risk of cavitation
- Electropolished: high corrosion resistance
- Easy & robust construction and easy maintenance: less downtime
- Easy to install
- Solid impellers compared to cheaper spot welded versions
- 2 seal diameters for the whole series
- Standard components
Performance Curves
Assembly and disassembly videos
Assembly video - Configuration with bellow seal - Seal diameter 43 mm
Assembly video - Configuration with a sterile seal - Seal diameter 43 mm
Assembly video - Configuration with double seal - Seal diameter 43 mm
Assembly video - Configuration with bellow seal - Seal diameter 70 mm
Assembly video - Configuration with double seal - Seal diameter 70 mm
Disassembly video - Replacement of bellow seal - Seal diameter 43 mm
Disassembly video - replacement sterile seal diameter 43
