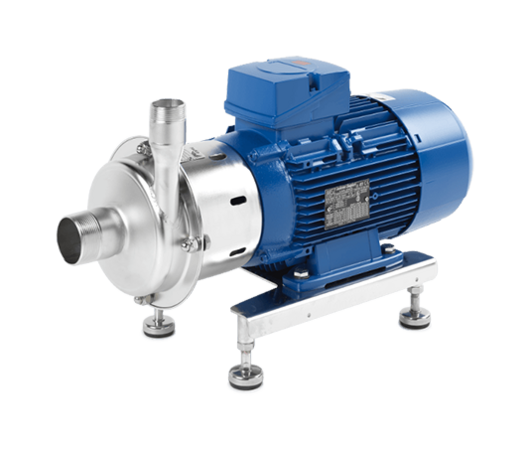

ICP2
These robust pumps have stainless steel 316L pump casings constructed in thick cold rolled plate and have open investment cast impellers in stainless steel 316L or duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.
-
Properties
Property Max. flow 110 m3/h Differential head 220 m wc Max. Inlet pressure depending on pump type up to 20 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open Max. free passage 22 mm Max. drive power 90 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, single balanced, quench, double, pressurized barrier Available O-ring materials EPDM, FKM, FEP-FKM, FFKM, Silicone Connections BSP fittings. flanges according to EN1092-1/01 & 02. ANSI flanges. smooth tubes Surface finish Industrial, internal welds not hand polished, electropolished Certificates MEI. ATEX. EAC -
Description
These robust pumps have stainless steel 316L pump casings constructed in thick cold rolled plate and have open investment cast impellers in stainless steel 316L or duplex materials. Thanks to its solid construction and electropolished design these pumps are the reliable component for your production process.

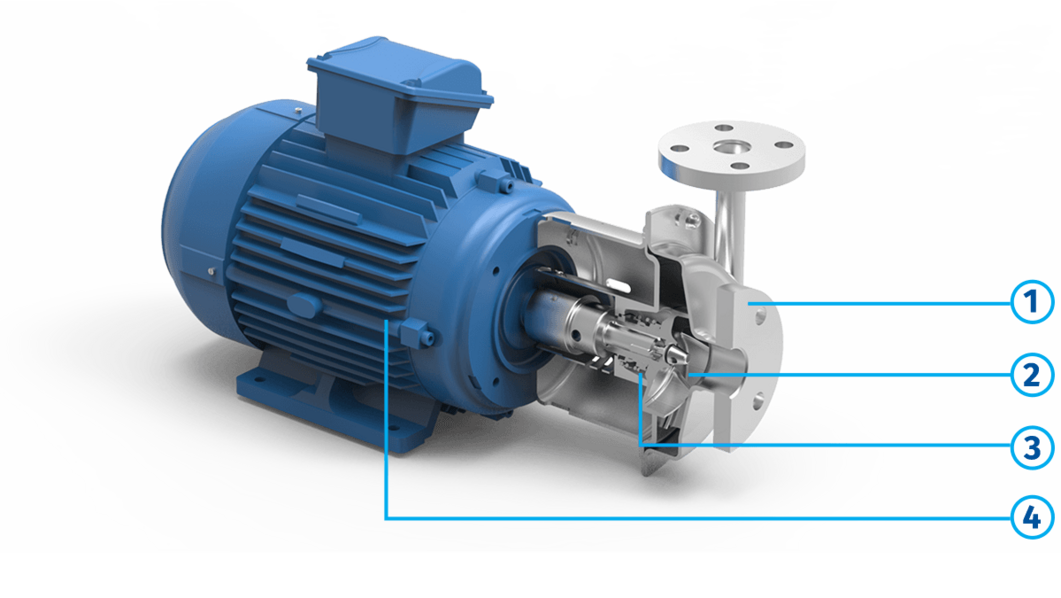

Pump series ICP2
- Pressed stainless steel, pump casing thickness up to 8 mm, back plate up to 20 mm
- Investment cast impellers
- Large seal cavity to guarantee liquid circulation around the seal
- Monobloc execution with std. IEC motors
Application areas
The Packo pumps of the ICP2 series are used in a wide range of industries and applications.
You can find them in just about all industries such as the vegetable industry, breweries, water treatment and the textile industry, but also in biogas, biodiesel and bioethanol applications, for example.
Typical liquids: blanching water, mash, wort, process water, contaminated water, biodiesel, bioethanol, alcohols, CIP, biogas, etc.
Your benefits
- High pump efficiency resulting in low energy consumption
- Low NPSH levels, less risk of cavitation
- Electropolished: high corrosion resistance
- Easy and robust construction and easy maintenance: less downtime
- Easy to install
- Solid impellers compared to cheaper spot-welded versions
- 2 sealing diameters for the entire series
- Standard Components
Performance Curves
Assembly and disassembly videos
Assembly video - configuration with bellow seal
Assembly video - configuration with sterile seal
Assembly video - configuration with quench and bellow seal
Assembly video - configuration with double seal
Disassembly video - replacement of bellow seal
