Verderflex Rapide
The Rapide is a compact peristaltic tube pump which can be installed as a unit in itself or integrated into a system such as a printing press or packaged turnkey skid.
Suitable for rugged environments, the range uses an IP55 rated gear motor and is assembled in a heavy duty aluminium housing. The tube is 'thick-walled' for the safe and reliable handling of abrasive, corrosive and viscous fluids such as chemical solutions, fine slurry, inks, dyes, additives and other dosing fluids.
Simple low pressure industrial dosing
- Easily integrated into existing equipment
- Ideal for liquid transfer
- Easily controlled
by external inverters - IP55 Protection

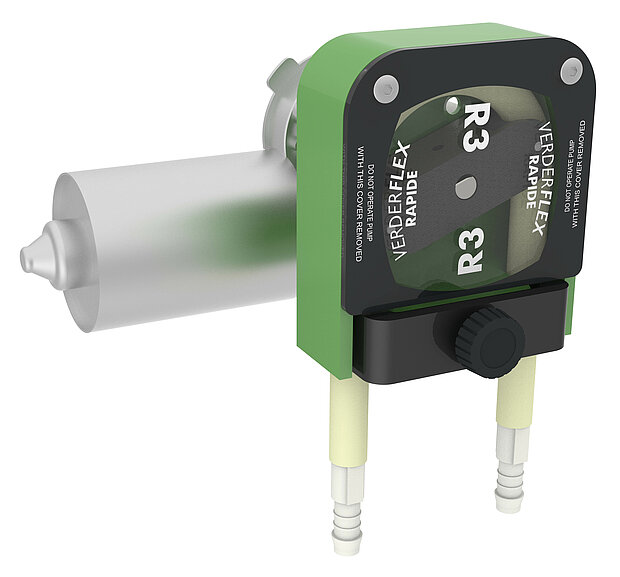

Verderflex Rapide types
View
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
|
|
R2S |
R3 |
R3DC |
R3S |
R5000 |
R6 |
R7S |
R8 |
R12 |
R17S |
|
| View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | View this pump type | |
| Max. flow |
0.41 GPM
|
1.01 GPM
|
0.9 GPM
|
0.83 GPM
|
1.61 GPM
|
1.67 GPM
|
1.65 GPM
|
2.07 GPM
|
3.7 GPM
|
4.49 GPM
|
| Max. (discharge) pressure |
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
29 PSI
|
| Max. temperature |
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
185 °F
|
| Max. tube |
0.31 inch
|
0.38 inch
|
0.38 inch
|
0.38 inch
|
0.38 inch
|
0.5 inch
|
0.63 inch
|
0.5 inch
|
0.63 inch
|
0.75 inch
|
| Tube Wall Thickness |
0.09 inch
|
0.13 inch
|
0.13 inch
|
0.09 inch
|
0.09 inch
|
0.13 inch
|
0.13 inch
|
0.13 inch
|
0.19 inch
|
0.19 inch
|
| Certificates |
FDA. USP
|
FDA. USP
|
|
FDA. USP
|
|
FDA. USP
|
FDA. USP
|
FDA. USP
|
FDA. USP
|
FDA. USP
|
| Tubing material |
|
|
Verderprene or Silicone
|
|
|
|
|
|
|
|
| Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet | Download datasheet |
Simple and easy: Verderflex Rapide
These simple IP 55 industrial style pumps can be easily integrated into existing equipment. They are ideal for liquid transfer and can be easily controlled by external inverters (VFD's).
