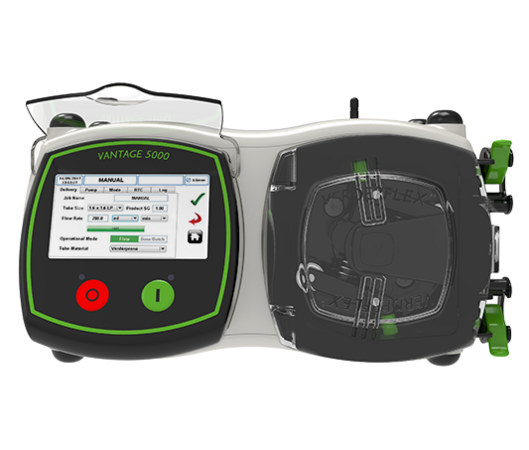

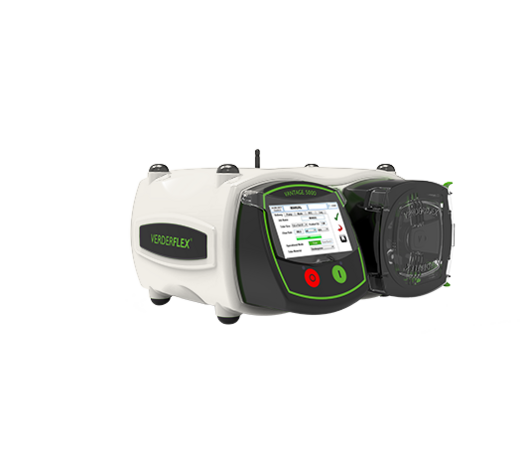

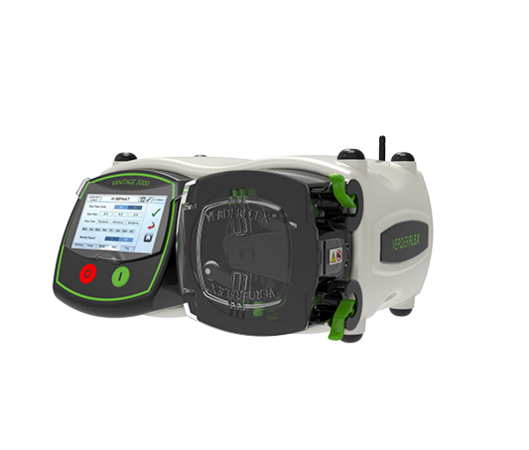

Vantage 5000 MODBUS
The Verderflex Vantage 5000 MODBUS is the next generation in networkable, remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface, real time event clock and a USB data backup port. Ideal for digitally controlled pump networks operating under the MODBUS(R) RTU protocol and providing 7 local control volt free inputs & 4 local volt free status outputs. The pump works with loose tubing at up to 2 bar or with dedicated Quick Release or Mini TriClamp tube assemblies at all pressures.
-
Properties
Property Protocol MODBUS RTU Max. flow 1.45 GPM Max. (discharge) pressure 101.5 PSI Turn down ratio 4096:1 Protection Class IP66, NEMA 4X Display & Programming Intuitive 110mm Full Colour Touch Screen LCD Backup USB v2 dataport Analogue Inputs & Outputs 0-10V, 4-20mA, Frequency Control Inputs 7 Status Outputs 4 Tube Failure Detection Standard Speed 400 rpm Power Supply 85-265V 50/60Hz 1 Phase Certificates FDA Max. solids particle size 0.1 inch
