VA P40

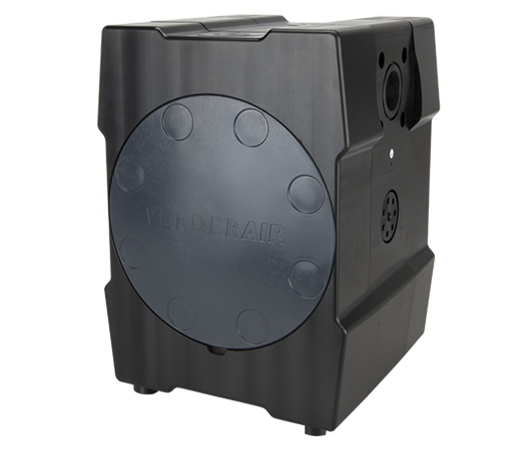

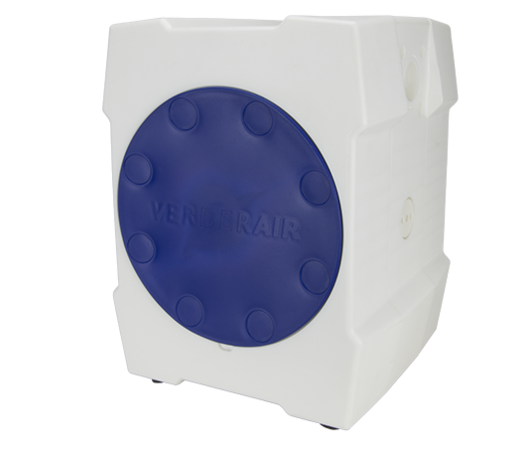

The Verderair PURE VA-P40 is a compact, high efficient air operated double diaphragm (AODD) pump, produced from one-piece solid pure PE or PTFE. Suitable for medium transfer/container emptying or as a basic dosing pump.
-
Lastnosti
Črpalka Max. flow 370 l/min Max. discharge pressure 7 bar Liquid conn. 1 1/2" NPT Maximum suction lift (wet) 9.5 m wc Certificates ATEX Air conn. R 1/2" Liquid conn. Flange DIN PN10 DN40, Flange Ansi 150 1 1/2" Maximum suction lift (dry) 4 m wc Max. particle size 9 mm Viscosity 15000 mPa.s Max. temperature 120 °C Materials liquids parts UHMW PE, Conductive PE, PTFE, Conductive PTFE Materials valves seats UHMW PE, Conductive PE, PTFE, Conductive PTFE Materials valve balls EPDM, PTFE, Cylinder valve Materials diaphragms EPDM (overmolded), PTFE (overmolded) Material center section UHMW PE, Conductive PE, PTFE, Conductive PTFE -
Opis
The Verderair PURE VA-P40 is a compact, high efficient air operated double diaphragm (AODD) pump, produced from one-piece solid pure PE or PTFE. Suitable for medium transfer/container emptying or as a basic dosing pump.
