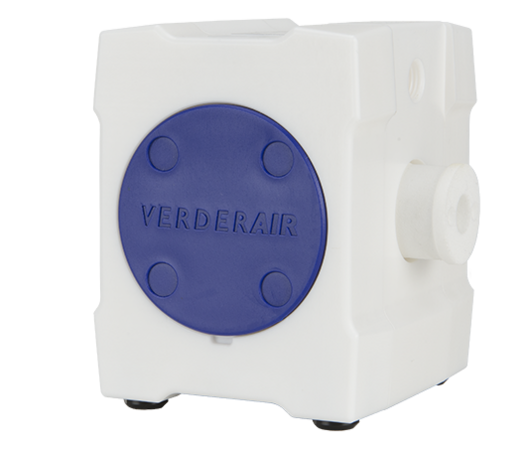

VA P08
The Verderair PURE VA-P08 is a compact, high efficient air operated double diaphragm (AODD) pump, produced from one-piece solid pure PE or PTFE. Suitable for small transfer/drum emptying or as a basic dosing pump.
-
Lastnosti
Črpalka Max. flow 19 l/min Max. discharge pressure 7 bar Liquid conn. 1/4" NPT Maximum suction lift (wet) 9 m wc Certificates ATEX Air conn. R 1/8" Maximum suction lift (dry) 1 m wc Max. particle size 2.2 mm Viscosity 500 mPa.s Max. temperature 100 °C Materials liquids parts UHMW PE, Conductive PE, PTFE, Conductive PTFE Materials valves seats UHMW PE, Conductive PE, PTFE, Conductive PTFE Materials valve balls EPDM, PTFE, Stainless Steel, Cylinder valve Materials diaphragms EPDM (overmolded), PTFE (overmolded) Material center section UHMW PE, Conductive PE, PTFE, Conductive PTFE -
Opis
The Verderair PURE VA-P08 is a compact, high efficient air operated double diaphragm (AODD) pump, produced from one-piece solid pure PE or PTFE. Suitable for small transfer/drum emptying or as a basic dosing pump.
