Chlorine Probes

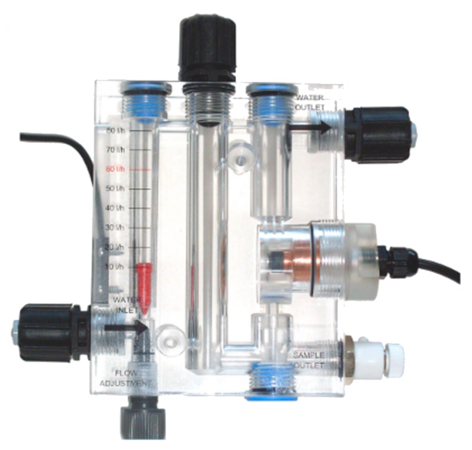

Chlorine reading probes. Amperometric/potentiostatic models.Amperometric cell: copper /platinum electrodes to measure residual chlorine. Supplied already mounted on a complete probe holder with flow regulator, flow sensor predisposition and housing for electrodes and PT100 temperature probe. Resolution: from 0,05 to 5.00 p.p.m. Self-cleaning trough glass balls, duty flow rate 40l/h. Max back pressure 3 bar.Potentiostatic cell: suitable for industrial, SWP and water treatment applications. The measurement is done by 2 electrodes and 1 cap membrane that allows an excellent reading quality. These cells reduce installation and maintenance times. Must be installed on line in the plant piping with a by-pass that pushes water inside the probe holder and stabilize the water flow (50l/h) to maintain a correct reading of the parameters.
-
Propriedades
Property Max. discharge pressure 1 bar Max. temperature 50 °C Cable length 1,5 m -
Descrição
Chlorine reading probes. Amperometric/potentiostatic models.Amperometric cell: copper /platinum electrodes to measure residual chlorine. Supplied already mounted on a complete probe holder with flow regulator, flow sensor predisposition and housing for electrodes and PT100 temperature probe. Resolution: from 0,05 to 5.00 p.p.m. Self-cleaning trough glass balls, duty flow rate 40l/h. Max back pressure 3 bar.Potentiostatic cell: suitable for industrial, SWP and water treatment applications. The measurement is done by 2 electrodes and 1 cap membrane that allows an excellent reading quality. These cells reduce installation and maintenance times. Must be installed on line in the plant piping with a by-pass that pushes water inside the probe holder and stabilize the water flow (50l/h) to maintain a correct reading of the parameters.
