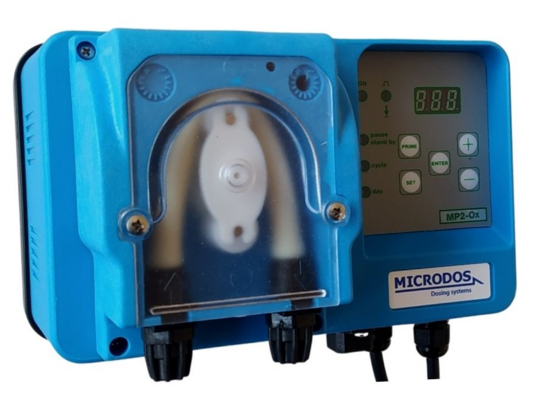

MP2-OXYGEN

Digital peristaltic dosing pump with proportional dosing. Suitable to dose Hydrogen Peroxide. Swimming pool volume (cubic meters) programmable by the user, and proportional dosing according to 2 parameters: duty time/swimming pool cubic meters. Residual dosing time shown in real time. Digital display with Standby button and 5 status LED. Level probe predisposition (as alternative to TAL system). Standard Power supply 230 Vac.

Propriedades

Property
Max. flow	1.5 l/h
Max. discharge pressure	1 bar
Max. temperature	85 °C
Max. particle size	10 mm
Certificates	CE
Protection Class	IP55
Tubing material	Santoprene
Roller	Delrin
Speed	15 rpm

Descrição

Digital peristaltic dosing pump with proportional dosing. Suitable to dose Hydrogen Peroxide. Swimming pool volume (cubic meters) programmable by the user, and proportional dosing according to 2 parameters: duty time/swimming pool cubic meters. Residual dosing time shown in real time. Digital display with Standby button and 5 status LED. Level probe predisposition (as alternative to TAL system). Standard Power supply 230 Vac.
Downloads
- Microdos_MP2-OXYGEN_INT_EN_Datasheet.pdf
- Microdos-ITC-Dosing-Range_INT_EN_Brochure.pdf
