RMO

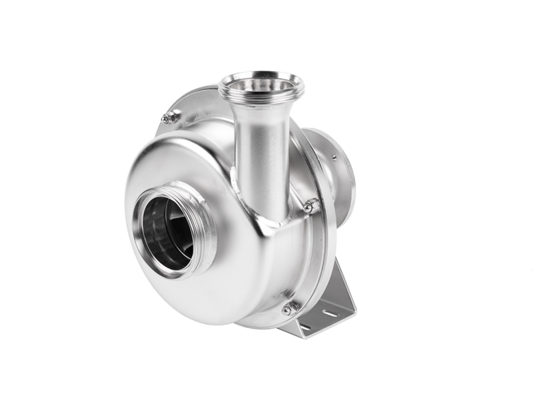

This pump series is especially produced for installation on lorries and trucks and are constructed on a stainless steel bearing pedestal. They can be equipped with an optional hydraulic or electric motor. Pumps provided with an electric motor can be powered by the batteries of the truck and can be executed in a monobloc design. These perfectly cleanable pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. Some of them have an investment cast casing, resulting in an even more solid design.
-
Properties
Property Max. flow 250 m3/h Differential head 30 m wc Max. Inlet pressure 10 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open / closed Max. free passage 25 mm Speed Variable Materials wetted parts 316L or similar Mechanical seal configuration Single Available material O-ring EPDM, FKM Connections Hygienic fittings Surface finish Hygienic quality, internal welds hand polished + electropolished (casing 0.8 μm - impeller 3.2 μm except for MFP series) Drive Hydraulic motor or electromotor Certificates 1935/2004 EC. FDA. USP. MEI. EAC -
Description
This pump series is especially produced for installation on lorries and trucks and are constructed on a stainless steel bearing pedestal. They can be equipped with an optional hydraulic or electric motor. Pumps provided with an electric motor can be powered by the batteries of the truck and can be executed in a monobloc design. These perfectly cleanable pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. Some of them have an investment cast casing, resulting in an even more solid design.

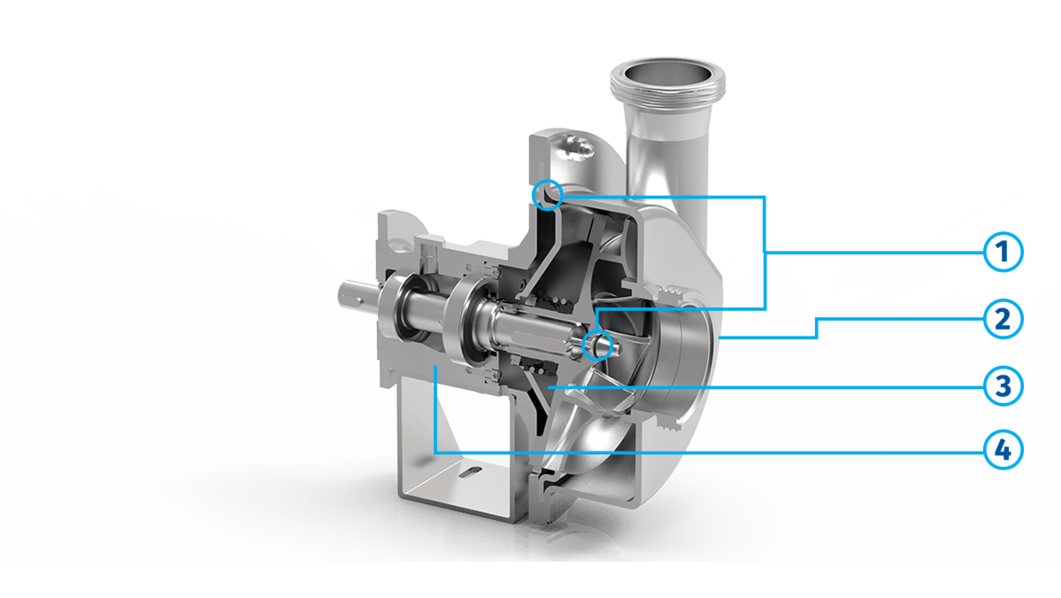

Pump series RMO
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Pressed or investment cast stainless steel, robust design
- Large seal cavity to clean mechanical seal properly
- Cast solid bearing housing with pedestal suitable for hydraulic motor
Application areas
The RMO series are used on trucks and lorries for the handling of liquids in the food industry such as milk, beer and wine.
They can also be used for the handling of AD Blue, drinking water and other liquids.
Your benefits
- High pump efficiency, low motor power
- Low NPSH values: less risk on cavitation
- Short built-in dimensions, space saving
- Robust design, smooth operation
- Higher capacity
- Low noise level
Performance Curves
