FP2

These pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP2 pump series are perfectly cleanable, resulting in a reliable component for your food production process.

Properties

Property
Max. flow	110 m3/h
Differential head	220 m wc
Max. Inlet pressure	depending on pump type up to 20 bar
Viscosity	1000 cP
Max. temperature	140 °C
Impeller type	Open
Max. free passage	22 mm
Max. drive power	90 kW
Speed	3000 / 3600 rpm
Available frequency	50 / 60 Hz
Materials wetted parts	Stainless steel 316L or similar
Mechanical seal configuration	Single bellow, sterile, quench, double
Available material O-ring	EPDM, FKM, FEP-FKM, FFKM, Silicone
Connections	Hygienic fittings
Surface finish	Hygienic quality, internal welds hand polished + electropolished (casing 0.8 μm - impeller 3.2 μm)
Certificates	1935/2004 EC. FDA. USP. ATEX. MEI. EAC

Description

These pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP2 pump series are perfectly cleanable, resulting in a reliable component for your food production process.
Downloads
- Packo_FP2_US_EN_Datasheet.pdf
- PACKO-FOOD-BROCHURE-EN.pdf

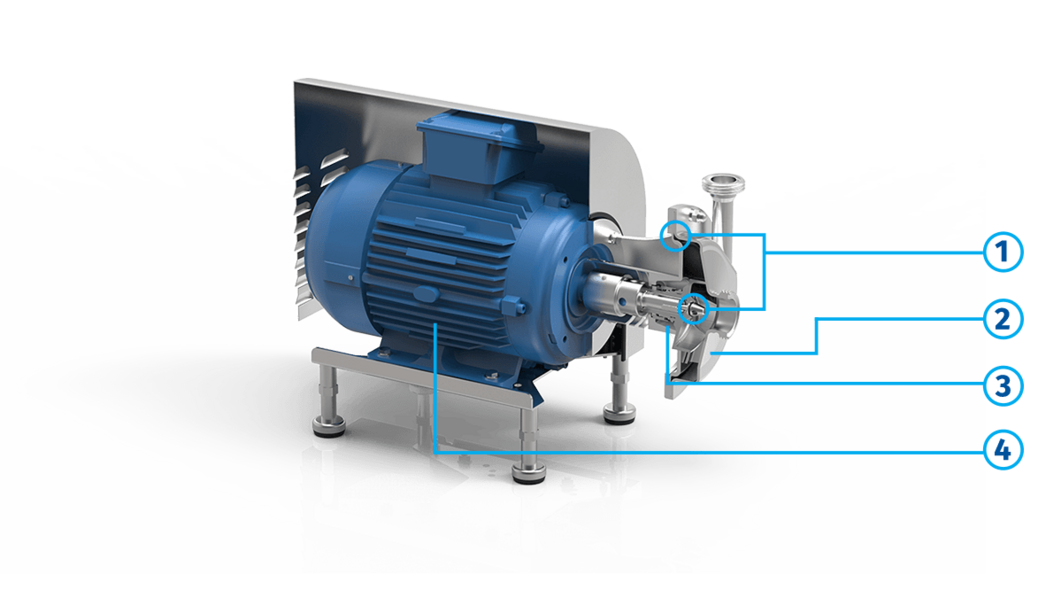

Pump series FP2

Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
Pressed stainless steel in 2B quality plate, extremely smooth
Large seal cavity to clean mechanical seal properly
Monobloc execution with std. IEC motors

Application areas

The Packo process pumps of the FP2 series are used in the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc.

They are the ideal solution for filtration applications, pasteurisation, evaporating systems, yeast propagation and for CIP cleaning systems as well.

Typical applications include filtration of beer, wine and fruit juices as well as pumping yeast, whey and curd.
