• Properties

    Property
    Max. flow 80 m3/h
    Differential head 75 m wc
    Max. Inlet pressure 13 bar
    Viscosity 10 cP
    Max. temperature 140 °C
    Impeller type Open
    Max. free passage 22 mm
    Max. drive power 22 kW
    Speed 3000 / 3600 rpm
    Available frequency 50 / 60 Hz
    Materials wetted parts Stainless steel 316L for casing and backplate, 1.4435 for the impellers, duplex 1.4462 for metallic parts of the seal and impeller screw
    Available materials O-ring EPDM, FKM, FEP-FKM, FFKM, Silicone
    Mechanical seal configuration Single, quench, double
    Connections Sterile connections
    Surface finish Pharmaceutical quality, roughness value < 0,4 µm for wetted parts, electropolished and fully certified.
    Certificates 3A. 1935/2004 EC. FDA. USP. ATEX. EAC
  • Description

    The pumps of the PRP2 series are perfectly cleanable 3A certified air handling pumps and are mainly used to pump a mixture of liquid and air. These perfectly cleanable pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non porous and extremely smooth. The pumps have fully machined open impellers constructed in 1.4435 material. Thanks to its crevice-free design and electropolishing as a final surface treatment, the PRP2 pump series are perfectly cleanable, resulting in a reliable component into your production process.

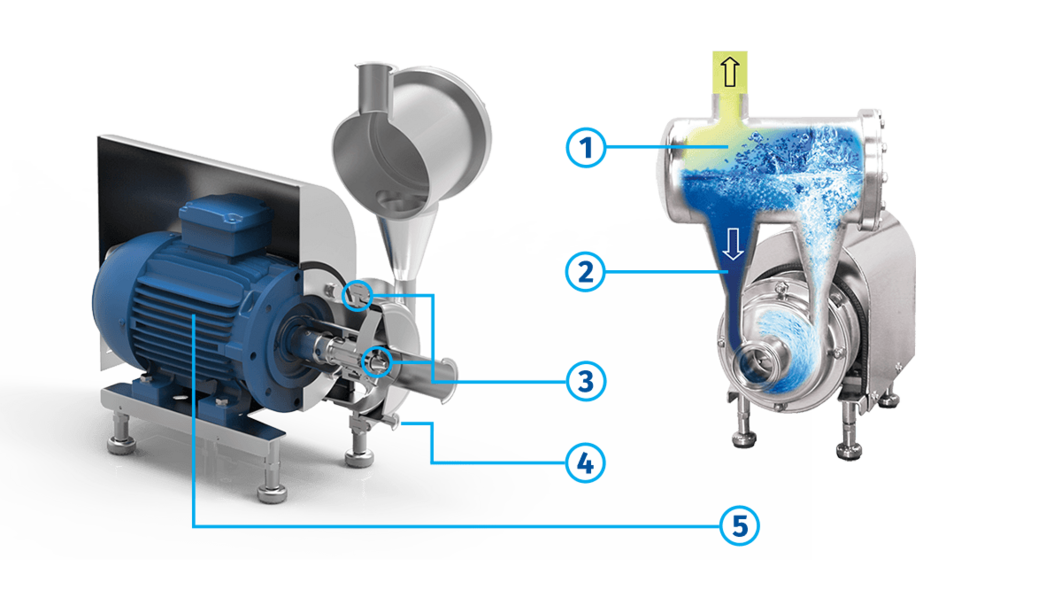

Pump series PRP2

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Unique air handling design with cleanable air separator
  3. By-pass to casing taking care about air evacuation
  4. Fully drainable
  5. Monobloc execution with std. IEC motors



Application areas

Thanks to its unique air handling design based on a standard centrifugal pump, the PRP2 series are particularly suitable as CIP return pump!

Your benefits

  • High pump efficiency lower energy consumption
  • Low NPSH values: less risk on cavitation
  • Electropolished: perfectly cleanable
  • Easy & robust construction and easy maintenance: Less downtime
  • Limited noise level
  • 1 mechanical seal diameter for the entire range
  • Fully certified (roughness value, FDA, USP, 3.1 for wetted parts, certificate of conformity, etc.)
  • Suitable for SIP
  • Parts in contact < 0,4 μm

Performance Curves
