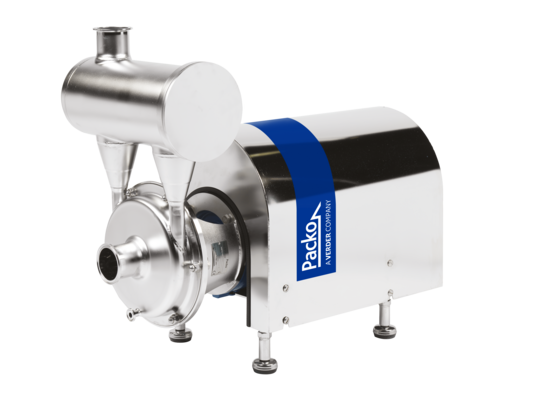

IRP+
These air handling pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials. Together with an electropolished design the industrial air handling pump series IRP+ are a reliable component into your production process.
-
Properties
Property Max. flow 80 m3/h Differential head 75 m wc Max. Inlet pressure 13 bar Viscosity 10 cP Max. temperature 140 °C Impeller type Open or closed Max. free passage 22 mm Max. drive power 22 kW Speed 3000/3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, single balanced, quench, double, pressurized barrier Available O-ring materials EPDM, FKM, FEP-FKM, FFKM or similar Connections Hygienic fittings Surface Finish Industrial, internal welds not hand polished, electropolished Certificates 1935/2004 EC. FDA. ATEX. EAC -
Description
These air handling pumps have stainless steel 316L pump casings constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials. Together with an electropolished design the industrial air handling pump series IRP+ are a reliable component into your production process.
Pump series IRP+

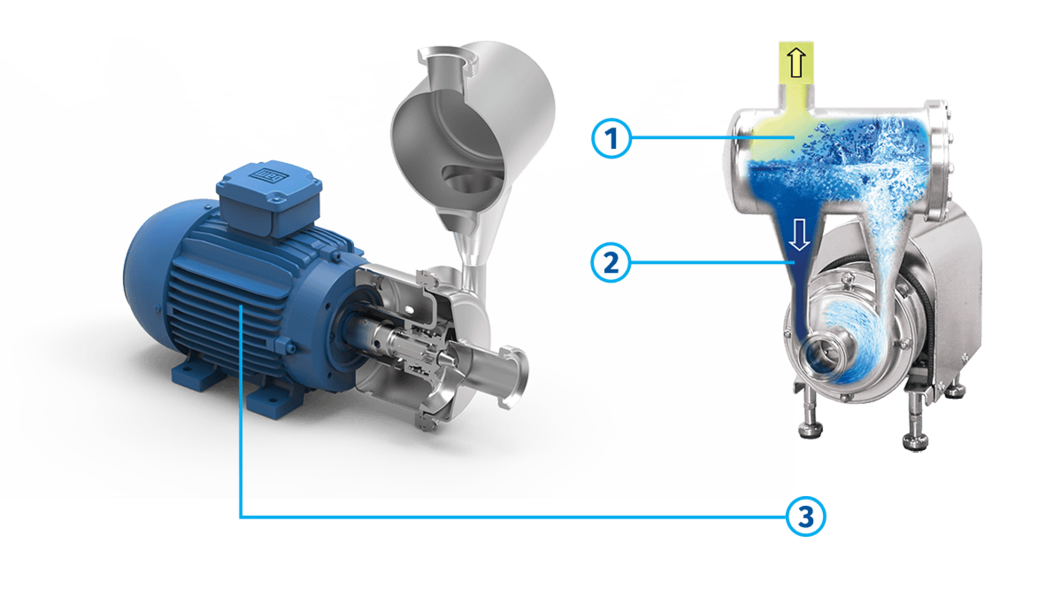

- Unique air handling design with cleanable air separator
- By-pass to casing taking care about air evacuation
- Monobloc execution with std. IEC motors
Application areas
Thanks to its unique air handling design based on a standard centrifugal pump, the IRP+ series are particularly suitable as a CIP return pump, as well as for unloading all type of collecting tankers and trucks.
Your benefits
- Higher pump efficiency compared with a classic liquid ring pump
- Low NPSH values: less risk on cavitation
- Electropolished: higher resistance against corrosion
- Easy & robust construction, easy to install and easy maintenance: less downime
- Construction without non-return valve
- Easy to install
- 1 mechanical seal diameter for the entire range
- Limited noise level
Performance Curves
Assembly and disassembly videos
Assembly video - configuration with sterile seal
