ICP1
The Packo stainless steel centrifugal pumps of the ICP1 series are the “best value for money” industrial pumps. They have investment cast open impellers. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.
-
Properties
Property Max. flow 70 m3/h Differential head 37 m wc Max. Inlet pressure 6 bar Viscosity 1000 cP Max. temperature 140 °C Impeller type Open or semi-open Max. free passage 18 mm Max. drive power 5.5 kW Speed 3000 / 3600 rpm Available frequency 50 / 60 Hz Materials wetted parts Stainless steel 316L or similar Mechanical seal configuration Single bellow, single balanced Available O-ring materials EPDM, FKM, FEP, FFKM Connections BSP fittings. flanges according to EN1092-1/02. smooth tubes Surface finish Industrial, internal welds not hand polished, electropolished Certificates MEI. ATEX. EAC -
Description
The Packo stainless steel centrifugal pumps of the ICP1 series are the “best value for money” industrial pumps. They have investment cast open impellers. This series achieves an overall high efficiency, leading to a lower energy consumption for your production process. Thanks to its modular concept it also guarantees an easy maintenance.

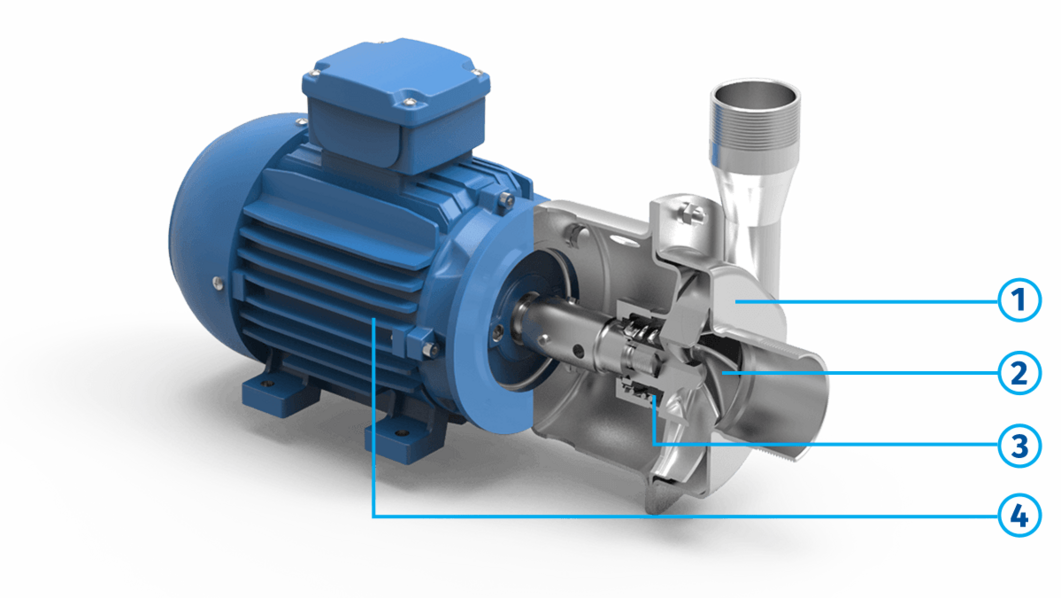

Pump series ICP1
- Pressed stainless steel with minimum thickness of 3 mm
- Investment cast impellers
- Large seal cavity to guarantee liquid circulation around the seal
- Monobloc execution with std. IEC motors
Application areas
The ICP1 pumps are mainly used for pure as well as for slightly contaminated liquids.
They are often used as a process pump in textile industry for washing textiles, for water treatment, but also for handling solvents, alcohols and chemicals.
Your benefits
- High pump efficiency resulting in lower energy consumption
- Low NPSH values: less risk on cavitation
- Electropolished: easy to clean
- Easy construction and easy maintenance: less downtime
- Easy to install
- Solid impellers compared to low cost spot welded versions
- Standard components

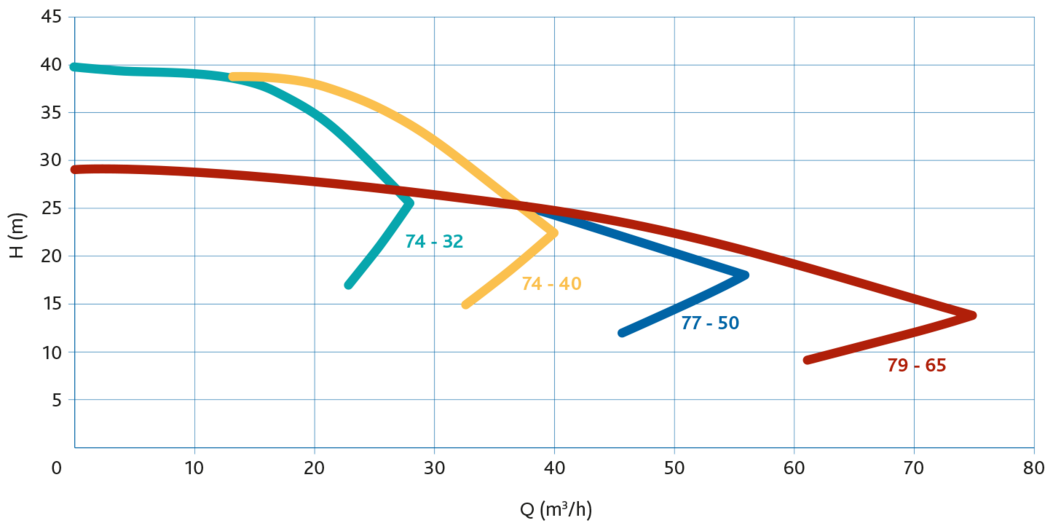

Performance Curves
Assembly and disassembly videos
Assembly video - configuration with bellow seal
Assembly video - configuration with sterile seal
Disassembly video - replacement of bellow seal
