VA-HCP15 SB

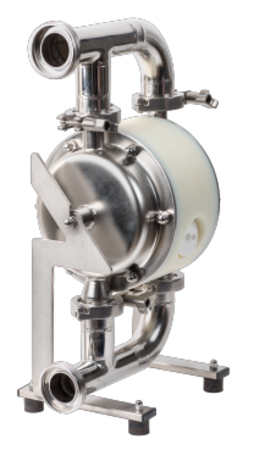

Verderair HCP15 SB hygienic double diaphragm pump for hygienic applications at the end of theproduction process in various industry such as beverage, pharmaceutical, cosmetics, dairy, food and brewery/winery.
-
Vlastnosti
Vlastnosti Max. průtok 80 l/min Max. tlak (na výtlaku) 7 bar Max. velikost pevných částic 10 mm Viskozita 5000 cP Certifikáty EN 1935. FDA. ATEX Air conn. BSP R 1/4” DIN 11851 DN25 DIN 11851 DN40 Liquid conn. Tri-clamp 1” (ASME BPE) Maximum suction lift (dry) 2 m wc Maximum suction lift (wet) 9 m wc Max. teplota 120 °C Materials housing SS316L - Ra<0,8µm Material center section Polyamide (PA6), Conductive polyethylene (PE-Cond.) Materials valves seats SS316L & PTFE, SS316L & EPDM FDA Materials valve balls EPDM, PTFE Materials diaphragms PTFE Overmold, EPDM Overmolded -
Popis
Verderair HCP15 SB hygienic double diaphragm pump for hygienic applications at the end of theproduction process in various industry such as beverage, pharmaceutical, cosmetics, dairy, food and brewery/winery.
