VMS

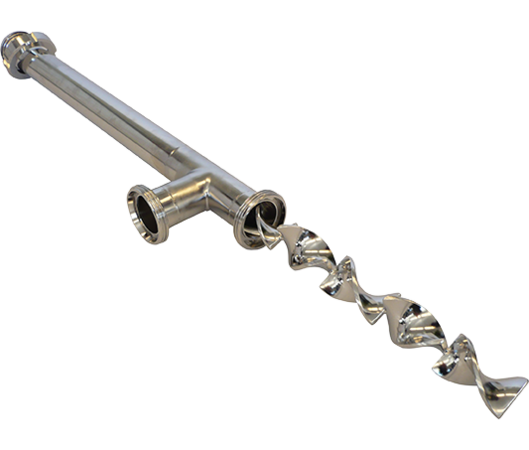

This type of static mixer is intended for the food and pharmaceutical industries designed with a perfectly cleanable construction. The element is retractable for thorough cleaning. All wetted parts are electro polished and meet the hygienic standards according to regulation 1935/2004/EC and FDA. Also available with jacket (double piping) for heating or cooling. Not available in X or V shape (in regards to cleaning).

Vlastnosti

Vlastnosti
Type of elements	Helicals
Number of elements	Min. 2 - Max. 12
DIN-size	• From DN8 to DN800 – other sizes on request. *From DN125: elements are made from separate strips, welded together
Materials	SS304, SS316
Connections	All common hygienic connections
Surface treatment	Electropolished

Popis

This type of static mixer is intended for the food and pharmaceutical industries designed with a perfectly cleanable construction. The element is retractable for thorough cleaning. All wetted parts are electro polished and meet the hygienic standards according to regulation 1935/2004/EC and FDA. Also available with jacket (double piping) for heating or cooling. Not available in X or V shape (in regards to cleaning).
Ke stažení
- Verdermix Brochure
