VA H25 FD

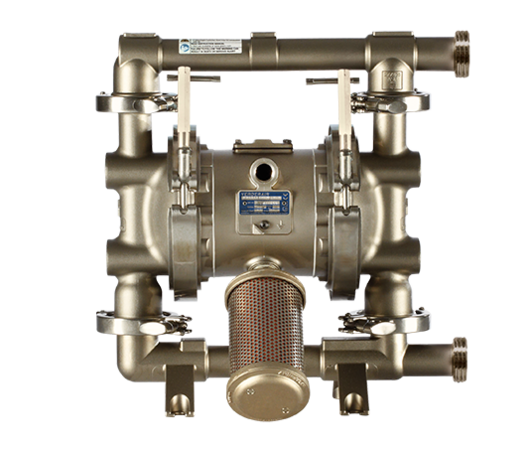

The Verderair HI-CLEAN VA-H25 FD为紧凑型气动隔膜泵,在食品和化妆品行业的卫生级流程中应用。适用于小流量运输/排空.
-
性能
属性 最大流量 156 l/min 最大出口压力 8 bar 最大颗粒尺寸 3.2 mm 粘度 12000 cP 认证 EN 1935. FDA. ATEX 连接 Tri clamp and DIN Air conn. 1/2" BSP/NPT Liquid conn. DIN11851 DN40 Liquid conn. 1 1/2" Triclamp (ASME(BPE)) Maximum suction lift (dry) 4.8 m wc Maximum suction lift (wet) 8.8 m wc 最高温度 104 °C Materials liquids parts SS316 - Ra<3,2µm Materials valves seats SS with EPDM o-rings, SS with PTFE o-rings Materials valve balls Santoprene, PTFE, Weighted Neoprene Materials diaphragms PTFE (2 piece), PTFE (overmolded), Santoprene Material center section Aluminium, Stainless Steel -
描述
The Verderair HI-CLEAN VA-H25 FD为紧凑型气动隔膜泵,在食品和化妆品行业的卫生级流程中应用。适用于小流量运输/排空.
