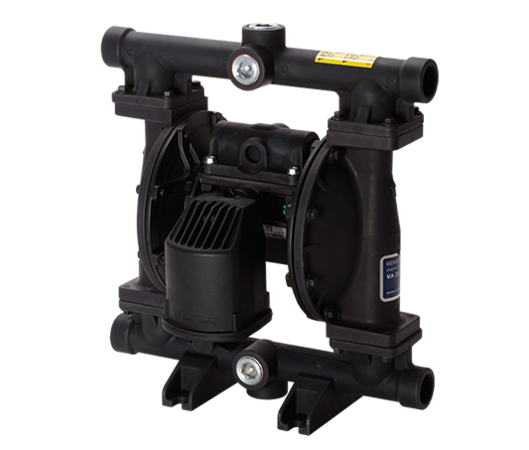

VA25 (HE) 金属型
VA25 (HE) 金属型气动隔膜泵，结构紧凑，高效运行，非常适用于介质的输送/排空，或做为基础加药泵。
-
性能
属性 最大流量 189 l/min 最大出口压力 8.6 bar Air conn. 1/2" BSP/NPT Liquid conn. 1" BSP/NPT Maximum suction lift (dry) 4.9 m wc 认证 ATEX Maximum suction lift (wet) 8.8 m wc 最大颗粒尺寸 3.2 mm 粘度 10000 mPa.s 最高温度 135 °C Materials liquids parts Aluminium, Stainless Steel, Hasteloy Materials valves seats Acetal, Aluminium, Buna N, Geolast, Polypropylene, Kynar(PVDF), Hytrel, Santoprene, Stainless Steel, Viton Materials valve balls Acetal,Buna N, Geolast, Hytrel, Santoprene, Stainless Steel, Viton, PTFE, Neoprene, Weighted Neoprene Materials diaphragms PTFE (2 piece), PTFE (overmolded), Hytrel, Buna-N, Santoprene, Viton, Geolast, Neoprene (overmolded) Material center section Polypropylene, Aluminum, Conductive Polypropylene -
描述
VA25 (HE) 金属型气动隔膜泵，结构紧凑，高效运行，非常适用于介质的输送/排空，或做为基础加药泵。
