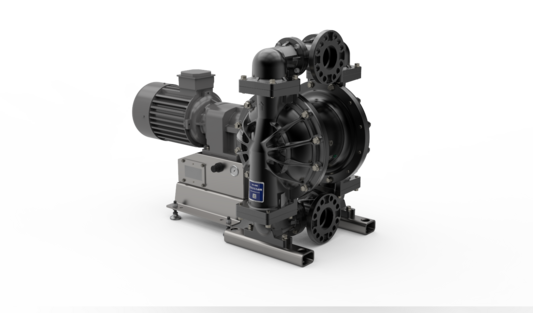

VA-E80 Metallic

The Verderair VA-EH80 Hygienic combines all advantages of an AODD with the energy-efficiency of an electric driven pump.

属性
最大流量	830 l/min
最大出口压力	4.8 bar
最大功率	5.5 kW
Liquid connections	3'' BSP/NPT
认证	ATEX
Maximum suction lift (dry)	4.8 m wc
Maximum suction lift (wet)	9.4 m wc
Max. solids particle size	12.7 mm
粘度	25.000 mPa.s
最高温度	104 °C
Materials liquid parts	Aluminium, Stainless Steel
Matarials valve balls	Geolast, TPE, Santoprene, 316 Stainless Steel
Materials diaphragms	Geolast, TPE, Santoprene, PTFE/Polychloroprene 2-Piece
Material center section	Aluminium, Stainless Steel

描述

The Verderair VA-EH80 Hygienic combines all advantages of an AODD with the energy-efficiency of an electric driven pump.
